WebEML User Manual Provision protection scheme parameters
765

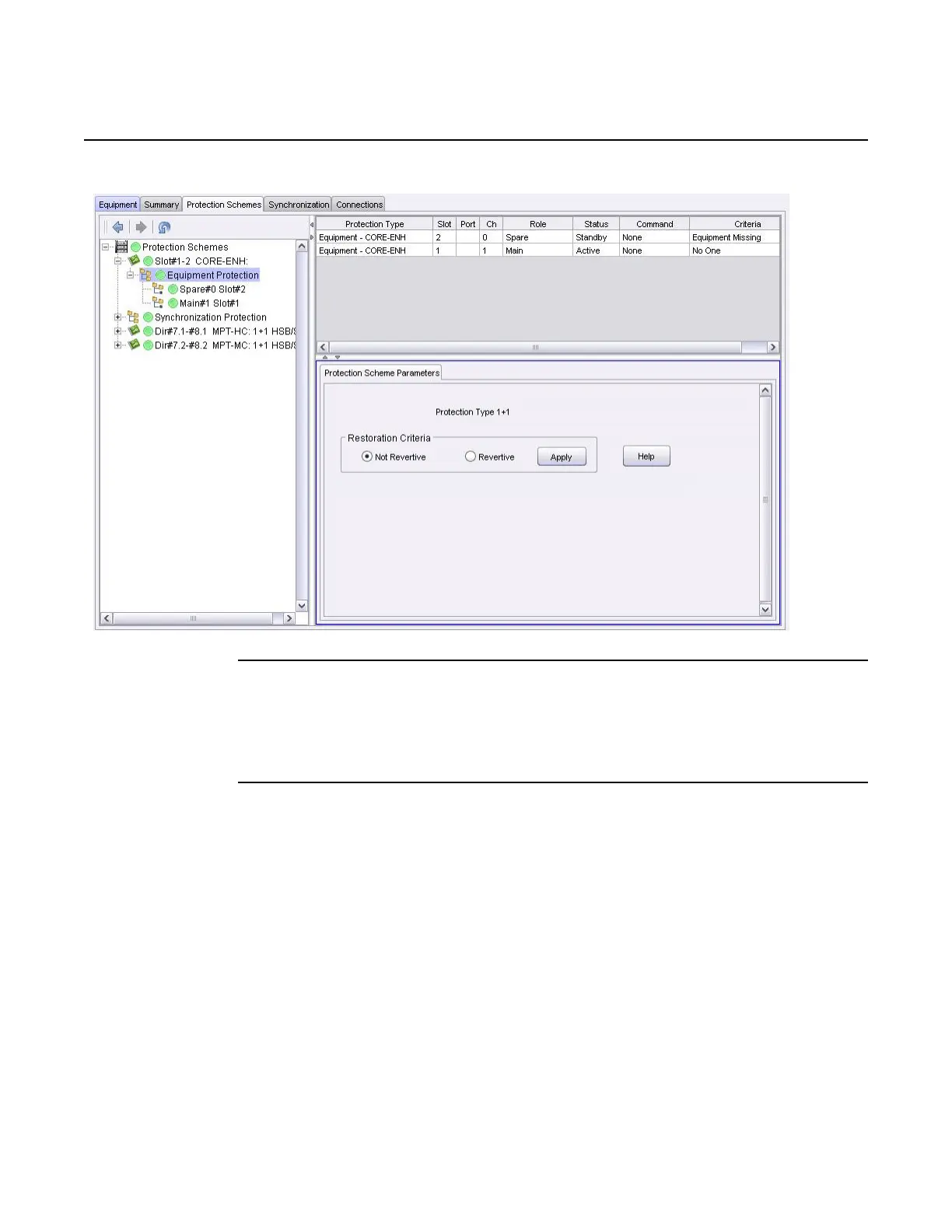

Figure 577 Core-E Protection Scheme Parameter tab
5. From the Restoration Criteria partition, verify restoration criteria selection and
provision if required:
a. Select restoration criteria radio button, Not Revertive or Revertive.
b. Click Apply.
6. View Synchronization Protection Scheme parameters
Select Protection Schemes/Synchronization Protection in the resource tree
area.
The synchronization Protection Schemes Parameter tab displays in the main
window. See Figure 578.
