Nokia 9500 MPR - Figure 434 Cross-Connection between Node I and NE G (Protected)

To Next Page

To Previous Page

Provision cross connections in a mixed fiber/

microwave Ring

624

WebEML User Manual

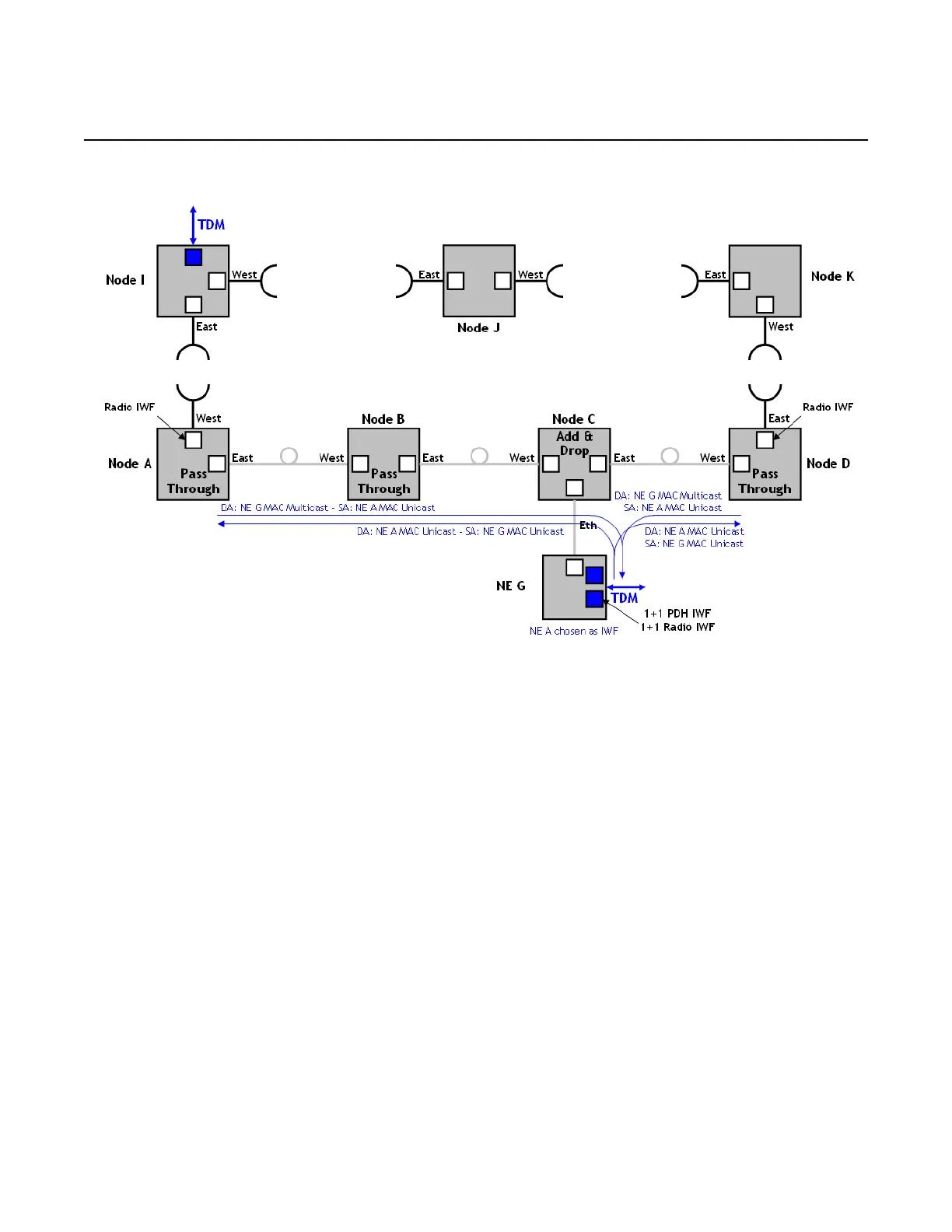

Figure 434 Cross-connection between Node I and NE G (protected)

Configure an Ethernet-Radio or Ethernet-PDH cross-connection on NE G, see

Figure 435 and Figure 436.

Release 7.0.0 3DB 19286 ACAA Issue 01
