Nokia 9500 MPR - Figure 381 ERP Topology Creation; Figure 382 ERP Topology Created

WebEML User Manual Provision Ethernet Ring Protection (ERP)
569

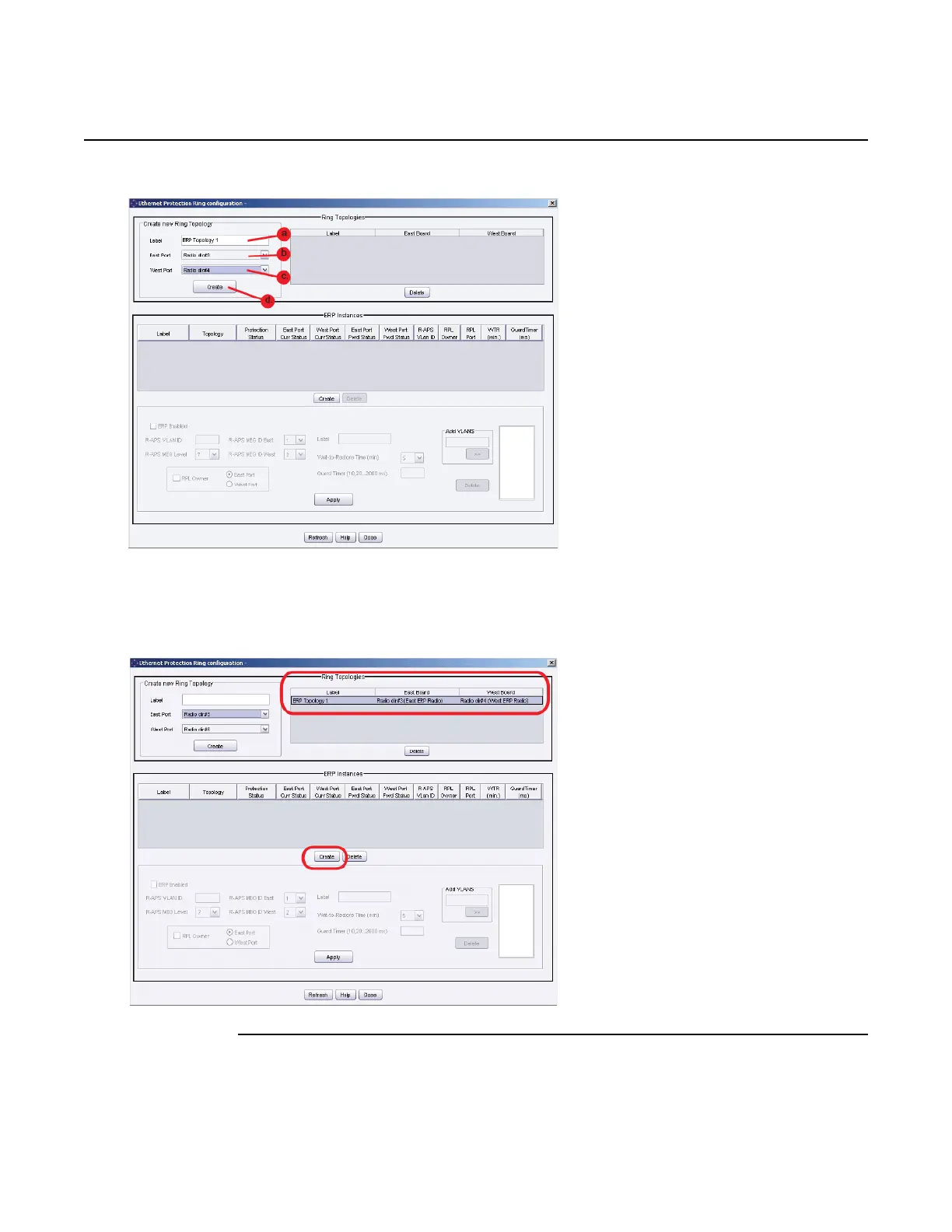

Figure 381 ERP Topology creation
Ethernet Protection Ring Configuration window updates. Ring Topology is
added to the Ring Topologies table. See Figure ERP Topology created.
Figure 382 ERP Topology created
4. Provision Ethernet Ring Instance
From the ERP Instance area, click Create. See Figure 382.
Release 7.0.0 3DB 19286 ACAA Issue 01
