Provision cross connections in a mixed fiber/
microwave Ring
600
WebEML User Manual

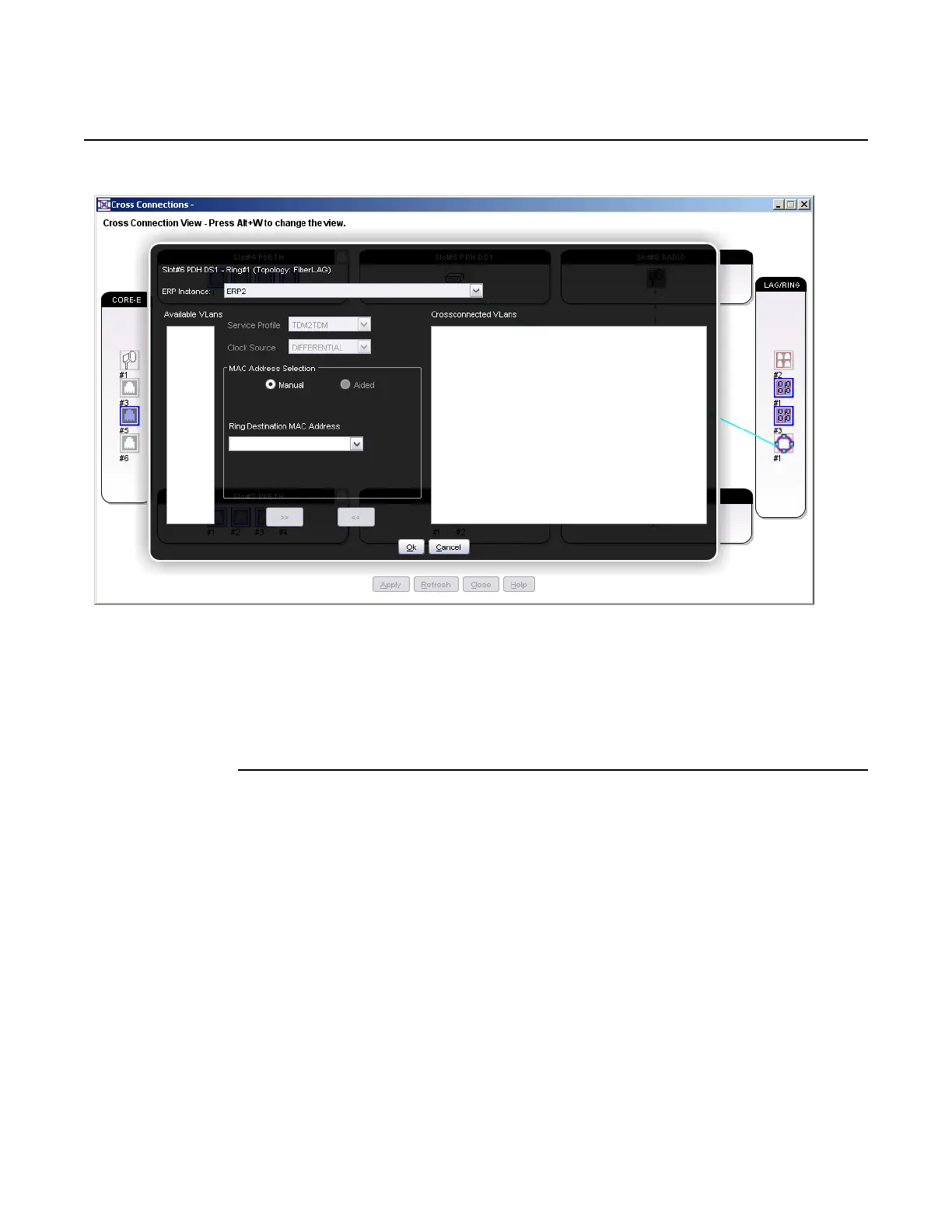

Figure 408 Node J to Node D: PDH-Ring cross-connection on Node D
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: Node A Unicast MAC address
To provision a cross-connection between Node J and Node D (protected)
1. One traffic end point belongs to the fiber chain. This end point (on Node D) is
protected, see Figure 409.
