WebEML User Manual Perform Tx Diversity Antenna operations
1073
To disable TDA
1. Select a radio direction in the Available MPT-HLC 1+1 HSB panel.
2. Click Disable TDA. A confirmation message is displayed; see Figure 783.

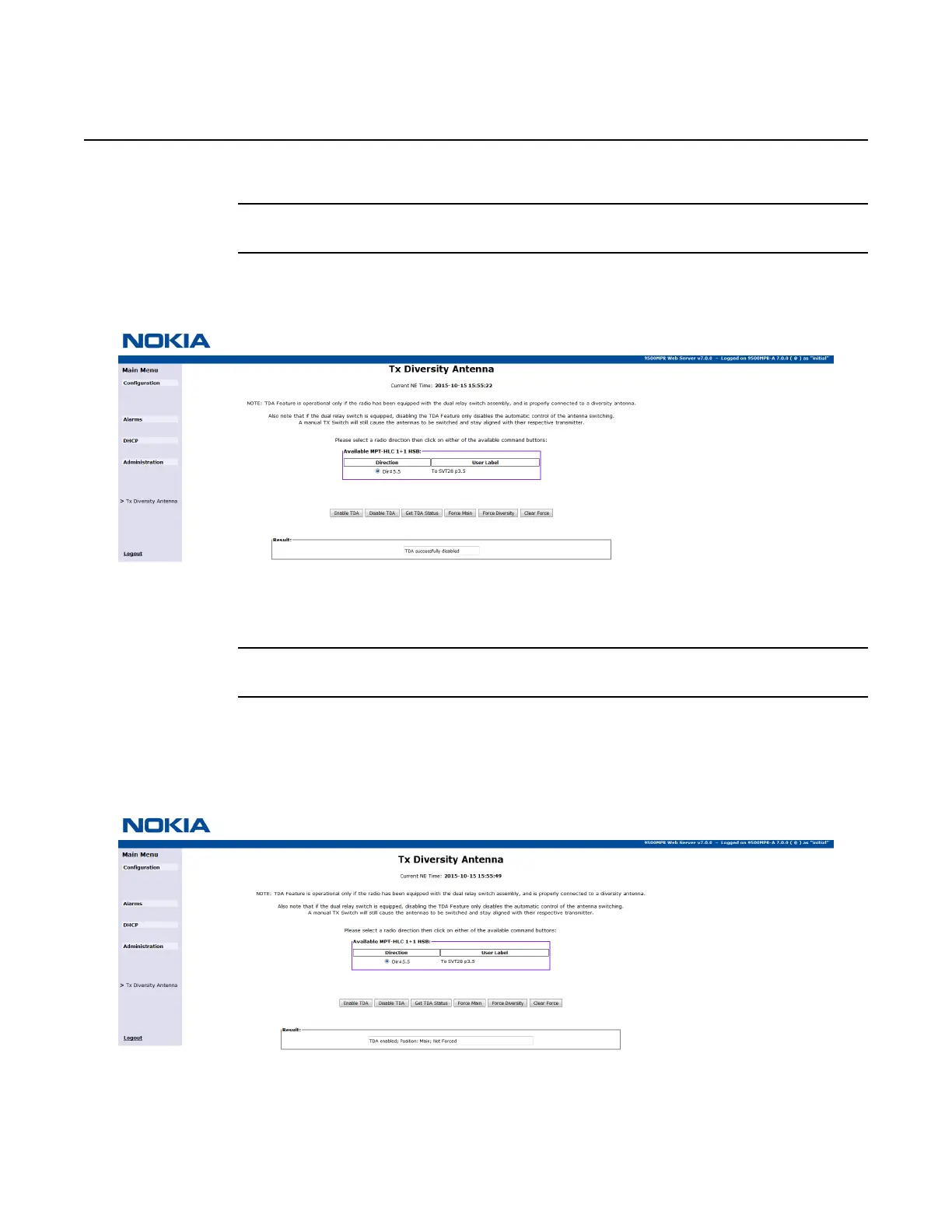

Figure 783 Tx Diversity Antenna disabled
TDA is disabled.
To view TDA status
1. Select a radio direction in the Available MPT-HLC 1+1 HSB panel.
2. Click Get TDA Status. Information is displayed, showing whether TDA is
enabled, the active antenna and whether the antenna has been forced; see
Figure 784.
Figure 784 Tx Diversity Antenna Status
To force transmission to the main antenna
Release 7.0.0 3DB 19286 ACAA Issue 01
