Nokia 9500 MPR - Figure 67 Restore Queue Size Default Values

WebEML User Manual Administer QoS configuration
155

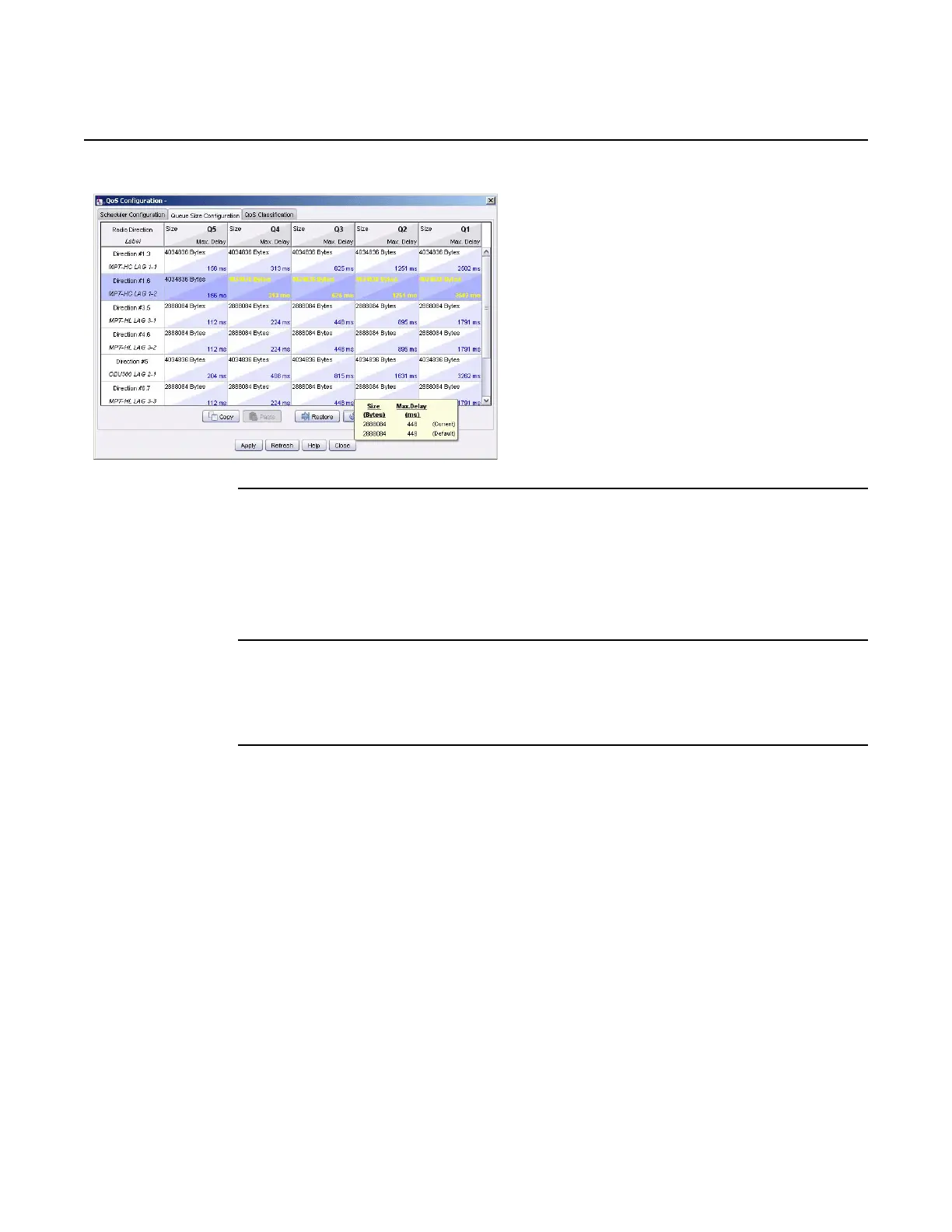

Figure 67 Restore Queue Size default values
2. Save changes to NE?
a. If yes, click on the Apply button and click Yes in the Apply Data to NE
window. The Queue Size Configuration tab updates. See Figure 63.
b. If no, see To restore Saved Queue Size values.
To restore saved Queue Size values
1. Click Restore. See Figure 67.
Queue Size Configuration tab restores the saved values. See Figure 63.
To open the Qos Classification tool to administer QoS Classification
1. Select QoS Classification tab. See Figure 68.
Release 7.0.0 3DB 19286 ACAA Issue 01
