Nokia 9500 MPR - Figure 72 Provisioned 802.1 P PCP to Internal Forwarding Class Mapping

Administer QoS configuration
158
WebEML User Manual
2. Repeat the previous step to provision additional IEEE 802.1p PCP to
Forwarding Class Mapping.
3. Save changes to NE?
a. If yes, click on the Apply button and click Yes in the Apply Data to NE
window. The QoS Classification tab updates. See Figure 72.

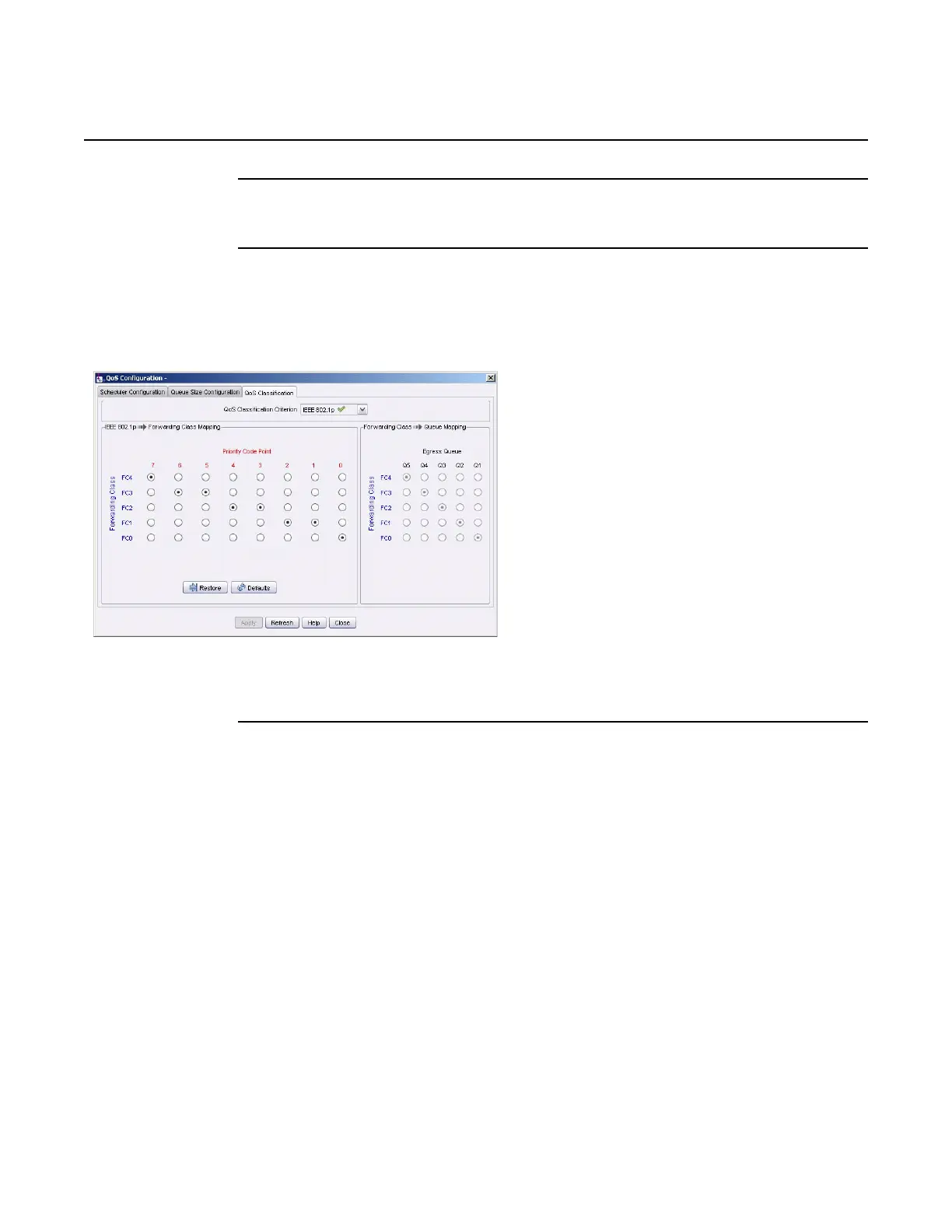

Figure 72 Provisioned 802.1p PCP to Internal Forwarding Class Mapping
b. If no, see To restore Saved Queue Size values.
To provision DiffServ DSCP to Internal Forwarding Class Values
1. From the DiffServ to Forwarding Class Mapping pane, select new DSCP to
Forwarding Class value. See Figure 73.
