Nokia 9500 MPR - Figure 40 TMN In-Band Port Enabled

WebEML User Manual Administer In-Band TMN VLAN port
127

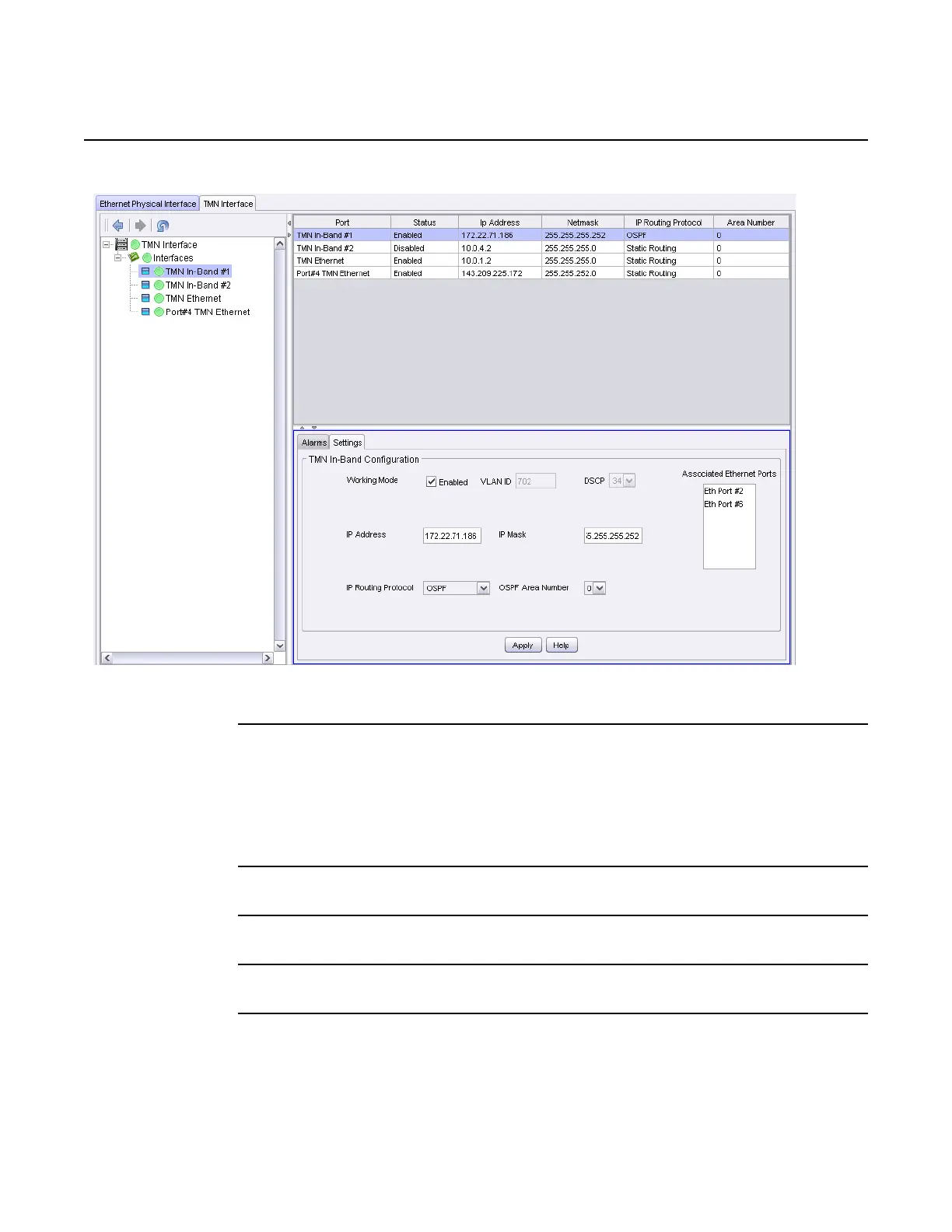

Figure 40 TMN In-band Port Enabled
To disable an In-Band TMN VLAN port
1. Select MSS/Core-Main slot #1 in the resource tree area. The selected name
will highlight in blue. This selection also highlights the CORE-Main card in blue
on the graphical representation of the MSS shelf in the resource list area.
Double-click on the blue CORE-Main (Core-E) Card. See Figure 38.
Ethernet Physical Interface Settings tab displays.
2. Select TMN Interface tab.
3. Select TMN In-Band#1/2.
4. Select Settings tab. See Figure 39.
5. Select Working Mode Enabled check-box (unchecked).
The Inband TMN page displays. See Figure 40.
