WebEML User Manual Provision cross connections in a mixed fiber/
microwave Ring
657

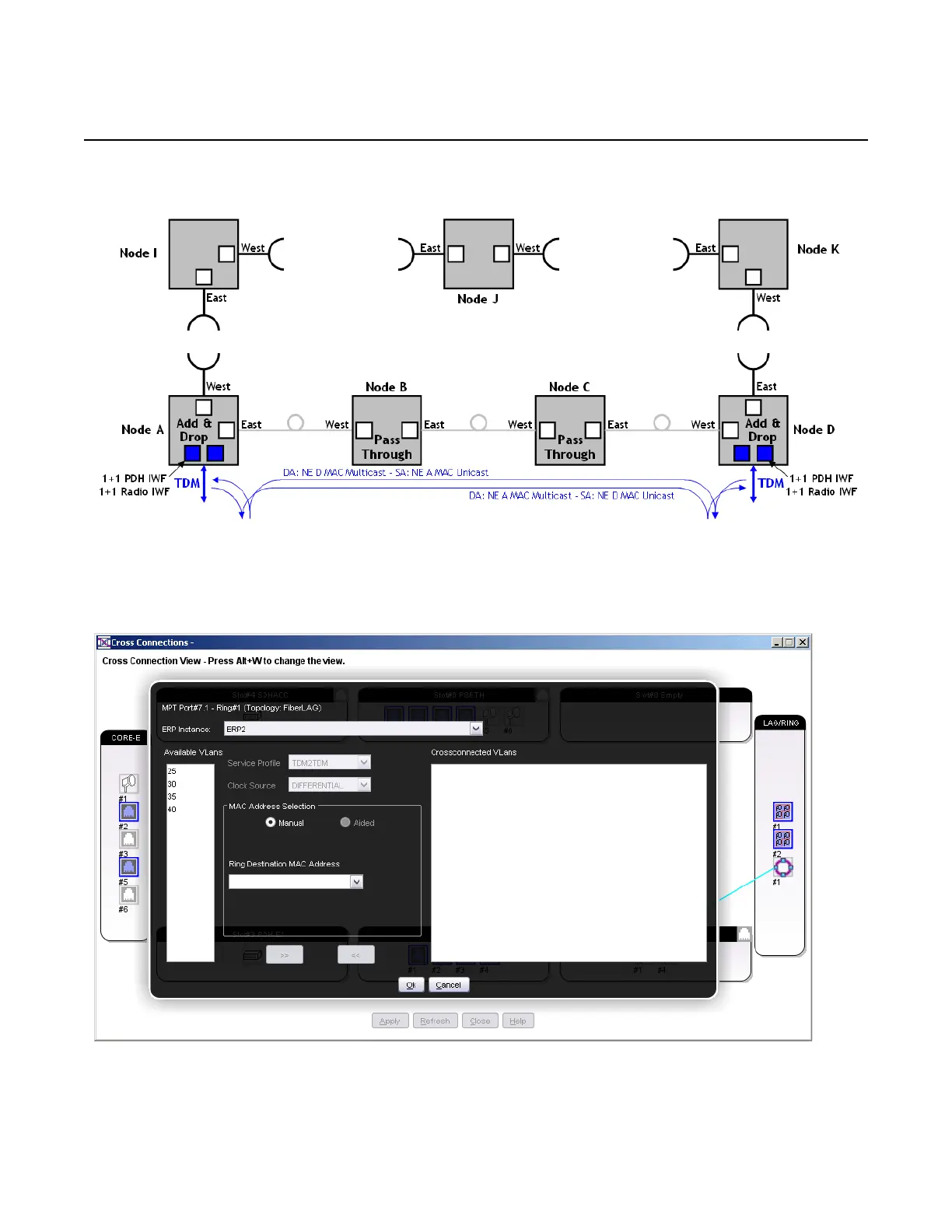

Figure 469 Cross-connection between Node A (protected) and Node D (protected)
Configure a Radio-Ring or PDH-Ring cross-connection on Node A, see
Figure 470 and Figure 471.
Figure 470 Node A (protected) to Node D (protected): Radio-Ring cross-connection on Node A
Release 7.0.0 3DB 19286 ACAA Issue 01
