WebEML User Manual Use the Provisioning Tool

901

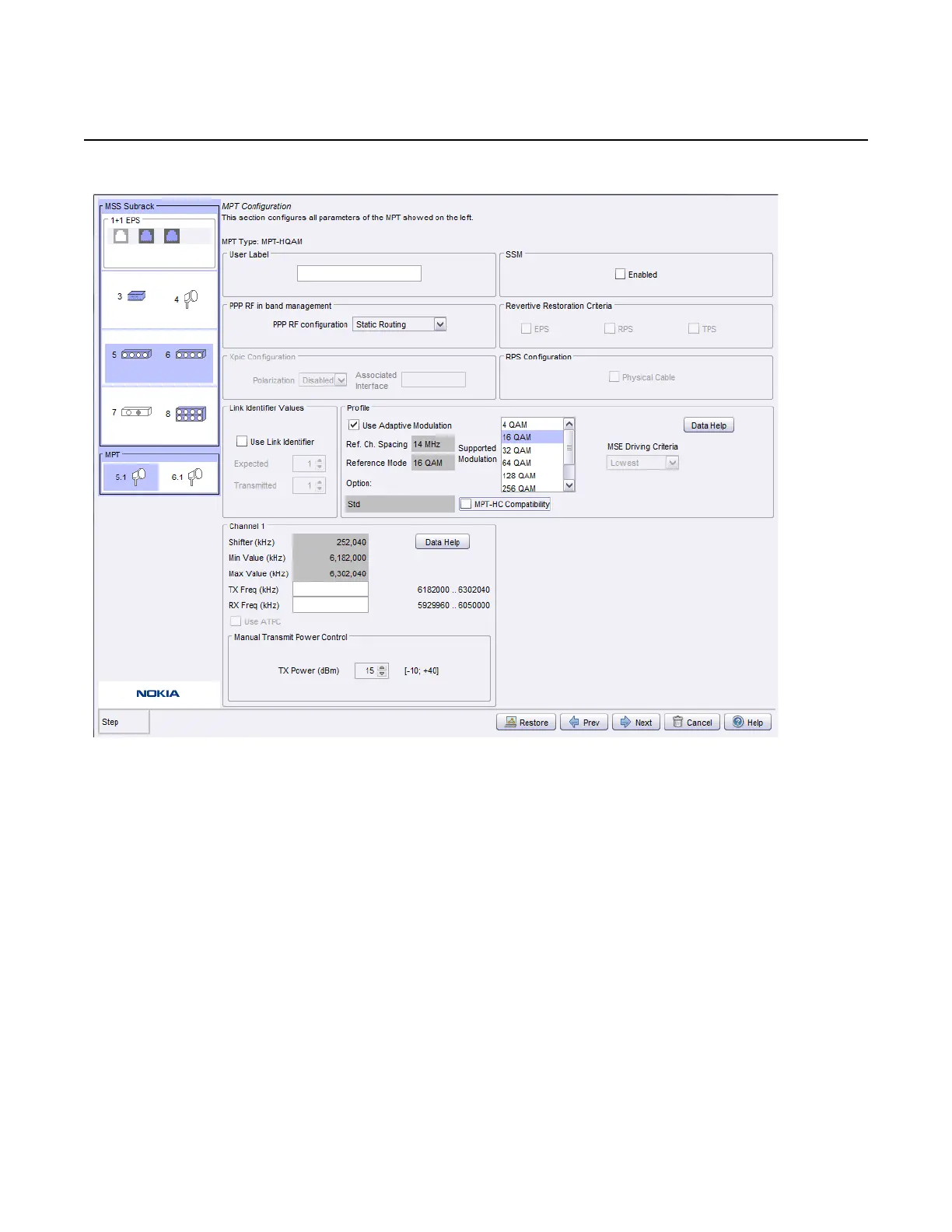

Figure 674 MPT configuration screen (1+0 with adaptive modulation)

i. Put a check mark in the Use Adaptive Modulation check box.

ii. Click on the Data Help button in the Profile area. The Data Help window

opens, see Figure 675 for an example.

Release 7.0.0 3DB 19286 ACAA Issue 01
