WebEML User Manual Configure radio parameters
807

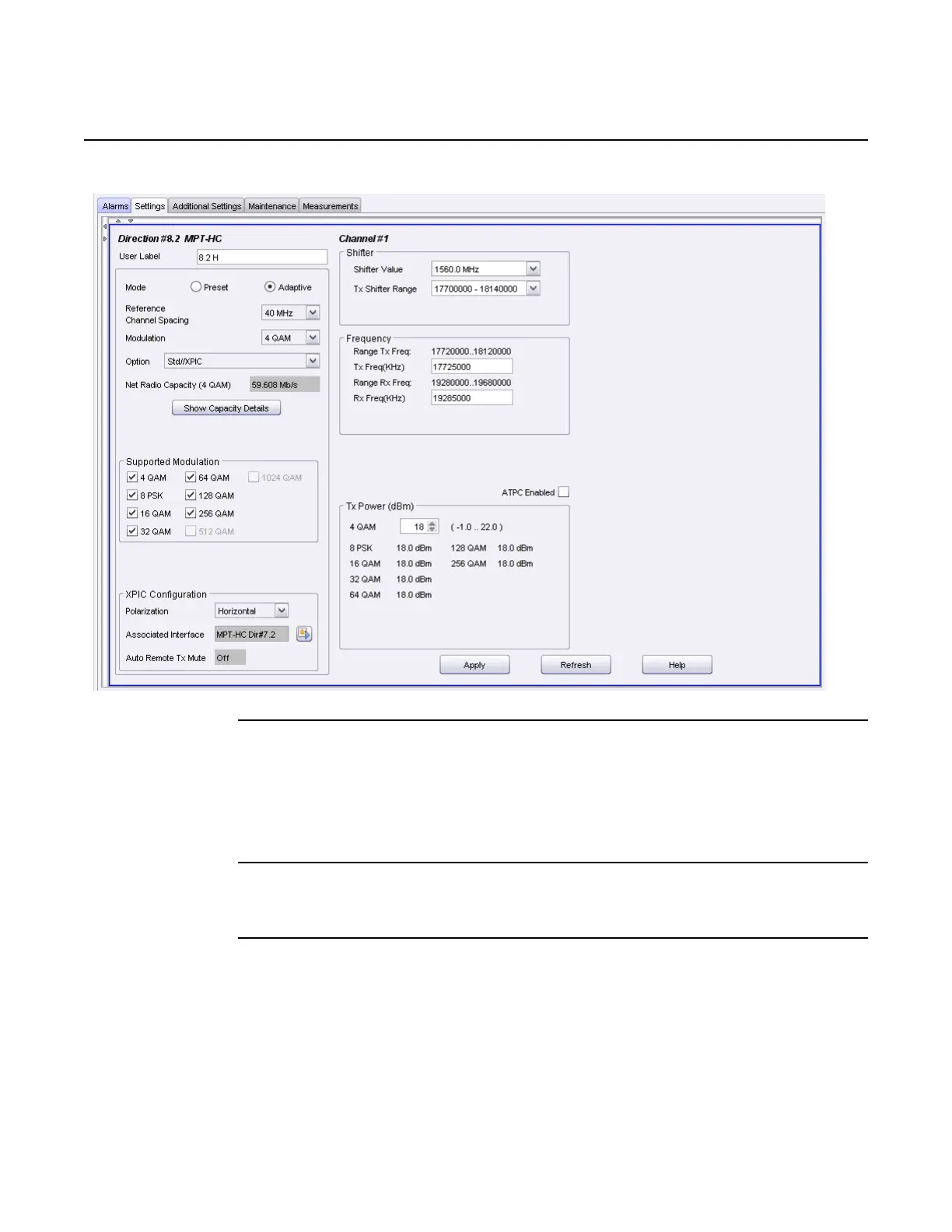

Figure 608 Provisioned MPT-HLC 1+0 Horizontal XPIC radio channel
12. Select an action.
a. To Provision the MPT-HLC manual transmit power level (RTPC), go to
step 42.
b. To Provision the MPT-HLC Automatic Transmit Power Control (ATPC), go
to step 44.
13. Configure the MPT-HLC 1+1 XPIC
Open the appropriate radio main view.
14. Provision MPT-HLC Horizontal 1+1 HSB Configuration:
See Figure 609 for the following steps:
a. Provision 1+1 HSB protection group. See step 24 for detailed steps to
provision radio channel protection type.
b. Provision main radio channel. See step 29 or 32 for detailed steps to
provision radio channel parameters.
