Provision protection scheme parameters
766
WebEML User Manual

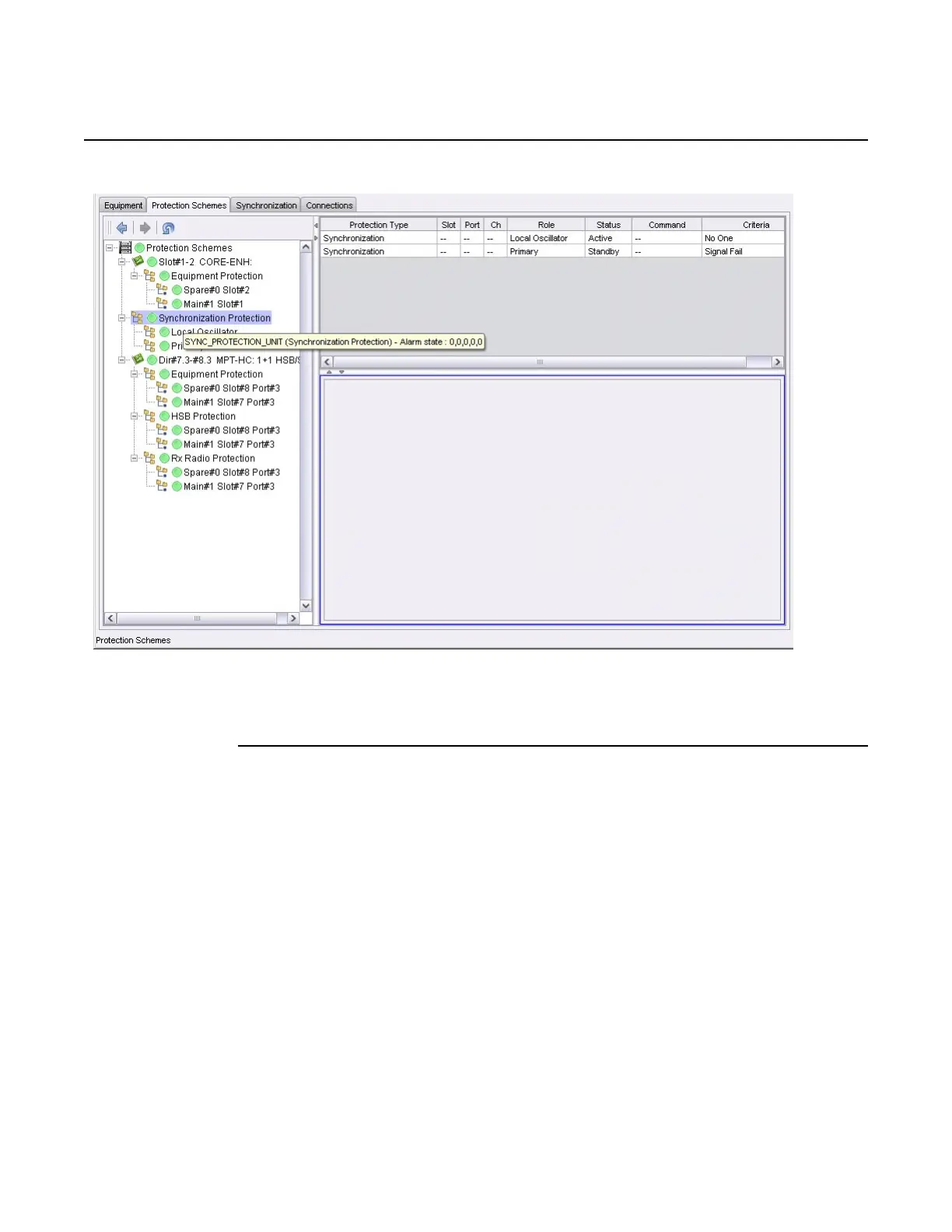

Figure 578 Synchronization Protection Scheme Parameter tab
The Synchronization switching scheme is provisioned on the Synchronization
tab. For detailed procedure to provision Synchronization switching parameters
see Administer synchronization.
7. View Radio Channel Protection Schemes parameters
Select Protection Schemes/Radio channel (Dir#x.y) in the resource tree area.
The Protection Scheme Parameters tab displays in the main window. See
Figure 579.
