Nokia 9500 MPR - Figure 703 802.1 D VLAN Management

To Next Page

To Previous Page

Use the Provisioning Tool

934

WebEML User Manual

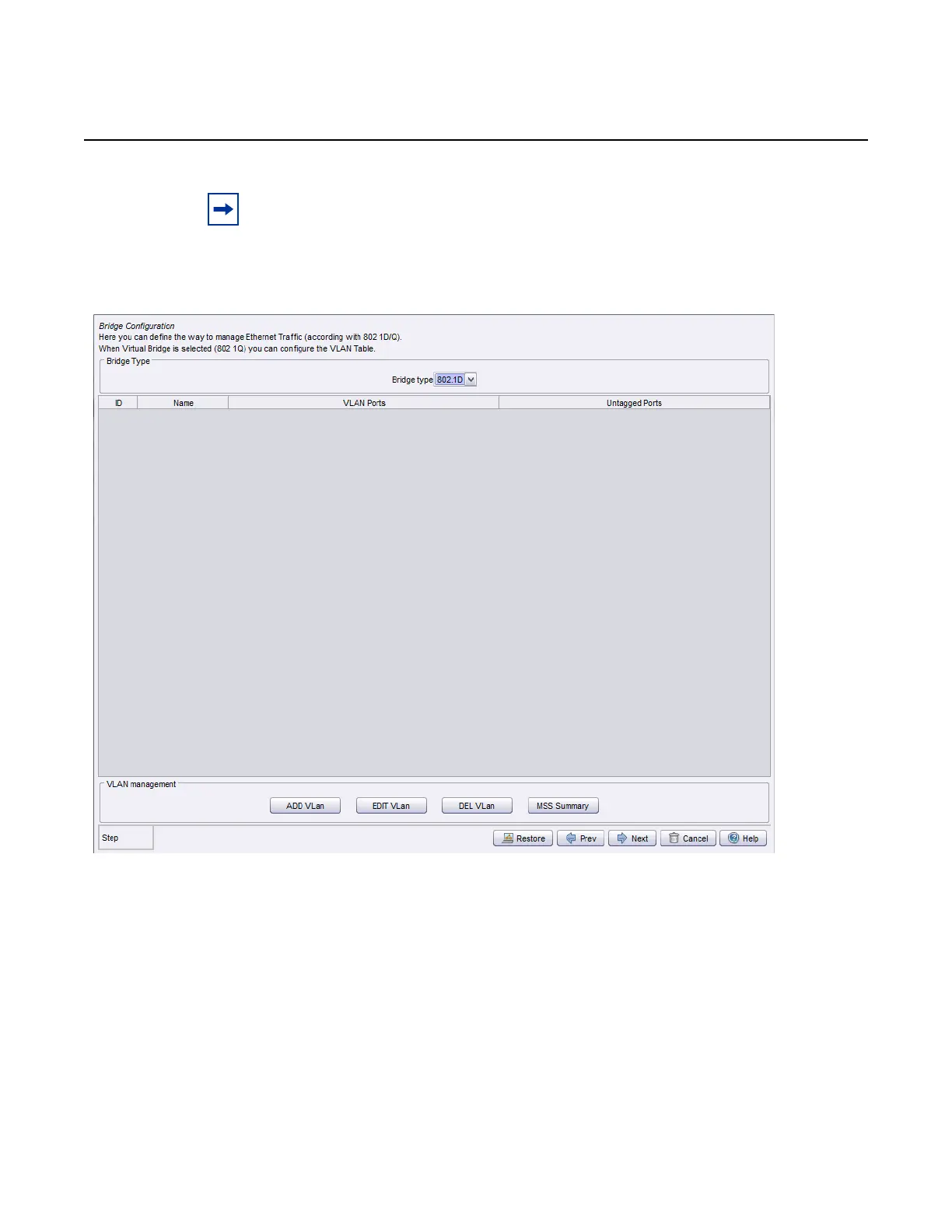

Figure 703 802.1D VLAN management

Note: 802.1ad (Provider Bridge) must be configured using WebEML.

The MSS Subrack panel does not appear in the Bridge configuration screen by default.

Click on the MSS Summary button to view it.

Release 7.0.0 3DB 19286 ACAA Issue 01
