Nokia 9500 MPR - Figure 405 Node J to Node D: Pass-Through Cross-Connection on Node B

WebEML User Manual Provision cross connections in a mixed fiber/
microwave Ring
597
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: Node D Unicast MAC address
e. Enter the Ring Source MAC address: Node A Unicast MAC address
2. Configure a pass-through cross-connection on Node B, see Figure 405.

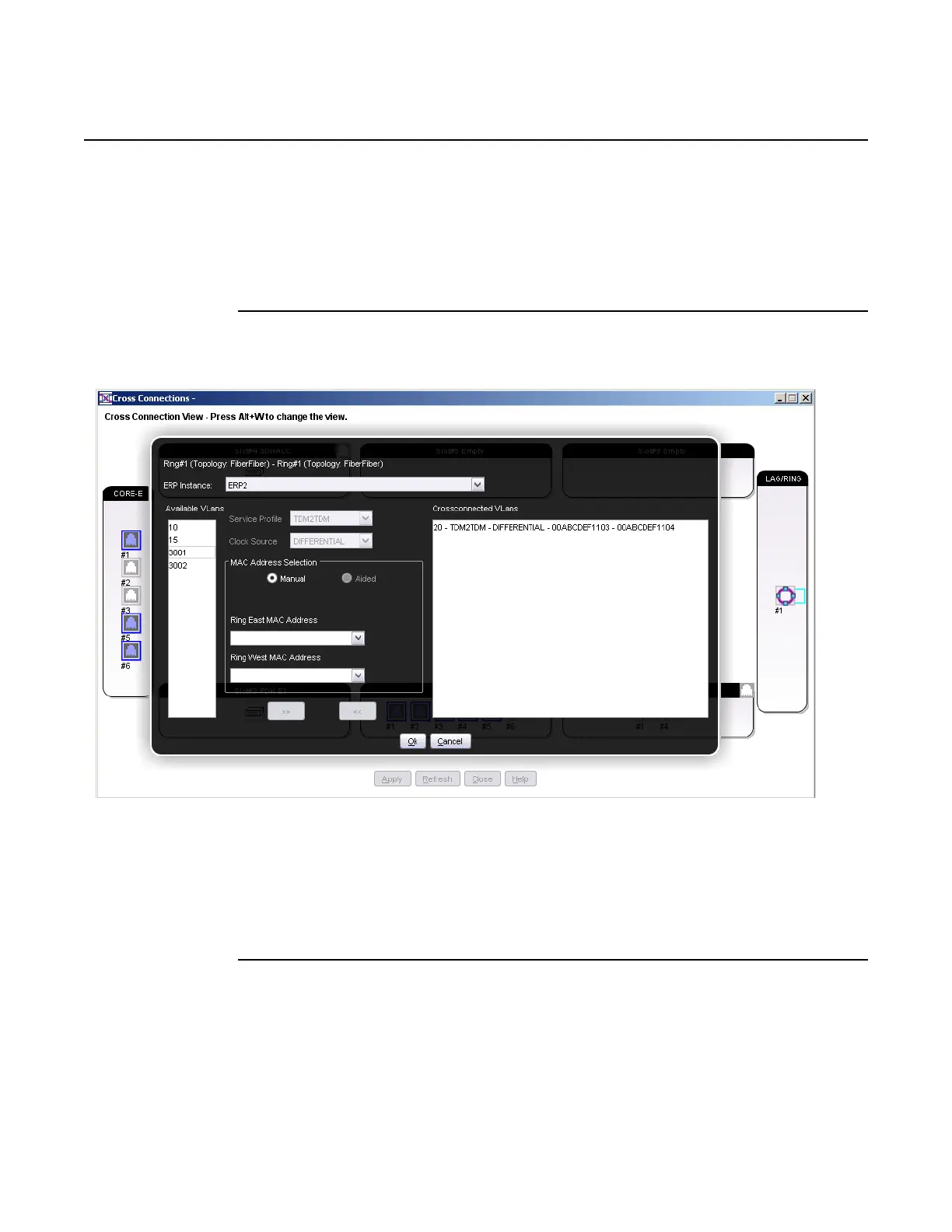

Figure 405 Node J to Node D: pass-through cross-connection on Node B
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring East MAC address: Node D Unicast MAC address
e. Enter the Ring West MAC address: Node A Unicast MAC address
3. Configure a pass-through cross-connection on Node C, see Figure 406.
