WebEML User Manual Disable equipment

555

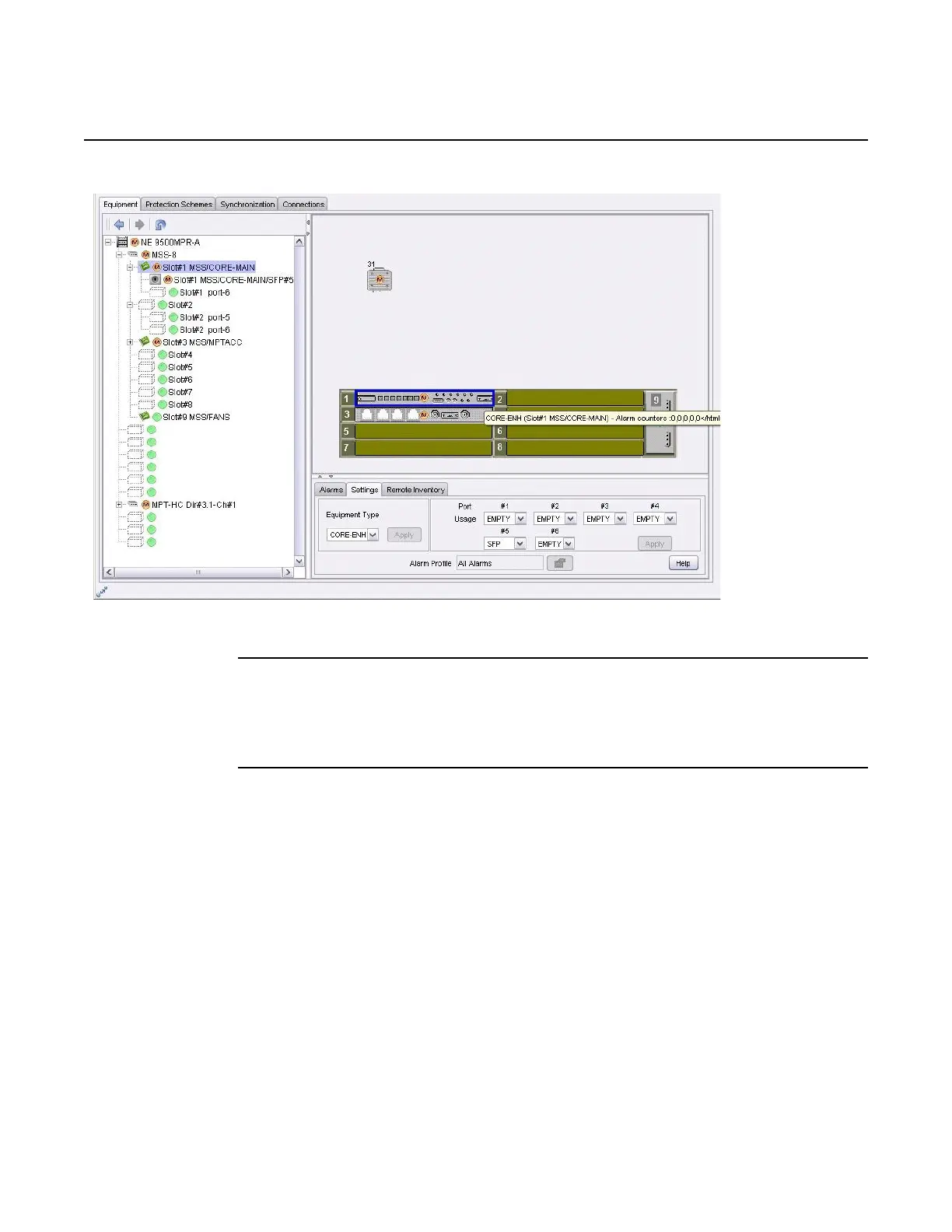

Figure 369 Disabled MPT-HC ODU from Core-E electrical Ethernet port

To disable an MPT-HC/XP/HC-HQAM/XP-HQAM/9558HC on P8ETH or EASv2

1. Select slot where the card is equipped in the resource tree area. The selected

name will highlight in blue. This selection also highlights the P8ETH or EASv2

card in blue on the graphical representation of the MSS shelf in the resource list

area.

2. Click the Settings Tab in the resource detail area. See Figure 370.

Release 7.0.0 3DB 19286 ACAA Issue 01
