viii. Node Timing: timing from the network element clock as defined in G.8261.
The enabling of the Node Timing is applied to both the STM-1. By enabling
the Node Timing the SMT-1 streams in Rx side are retimed at the output
with the network element clock.
3. Figure 682 shows the configuration screen for SDHCHAN.

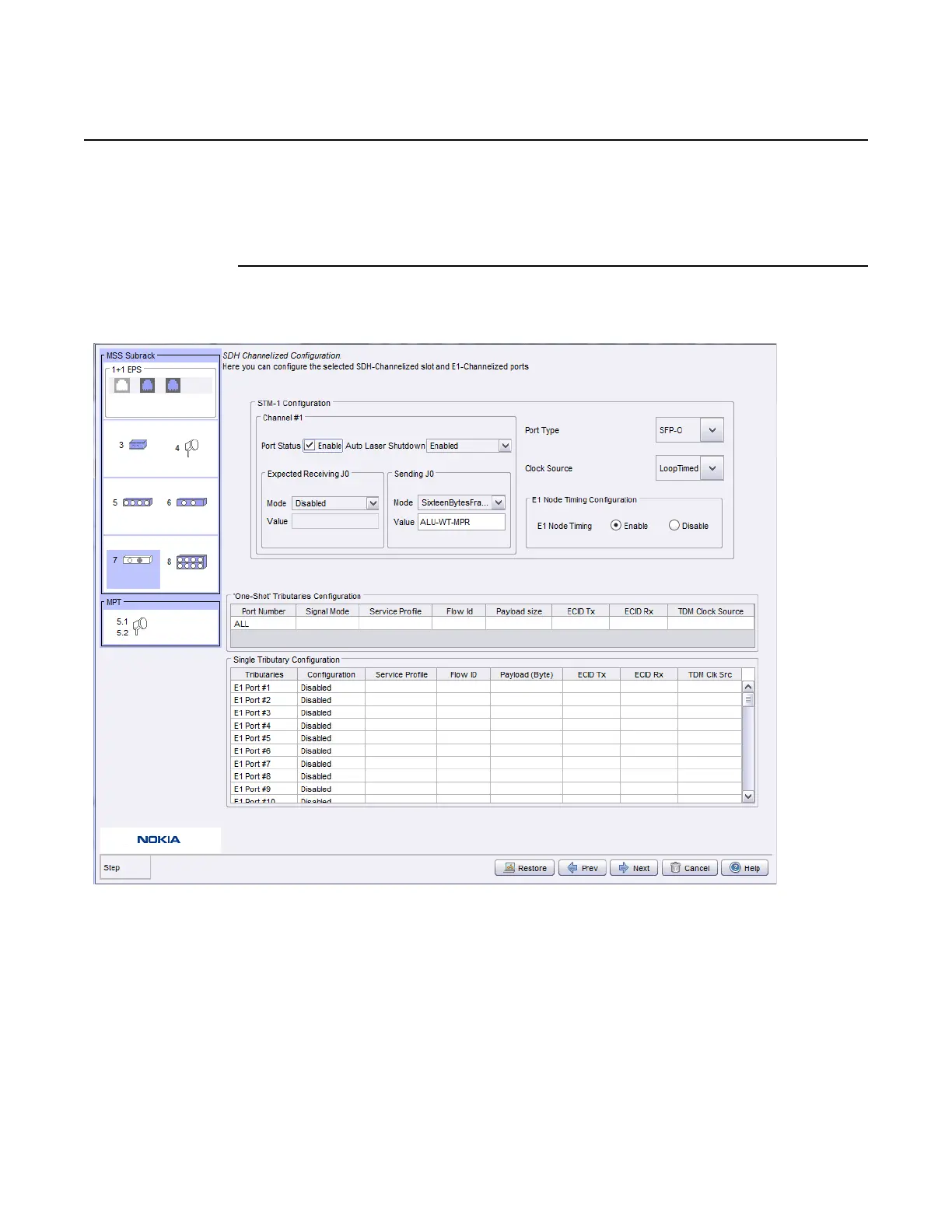

Figure 682 SDHCHAN configuration screen
i. Select the Port type: SFP-O (Optical) or SFE-E (Electrical)
ii. Put a check mark in the Port Status box to enable the STM-1.
iii. Set the Auto Laser Shutdown: Enabled/Disabled ForcedOn/Disabled
ForcedOff. This field will appear only if the Settings tab-panel of the STM-1
unit the optical SFP has been selected.
iv. Select the Clock Source.
Release 7.0.0 3DB 19286 ACAA Issue 01
