Nokia 9500 MPR - Figure 236 9500 MPR Equipment Tab: Core-E Card Selected

WebEML User Manual Provision Ethernet ports
411

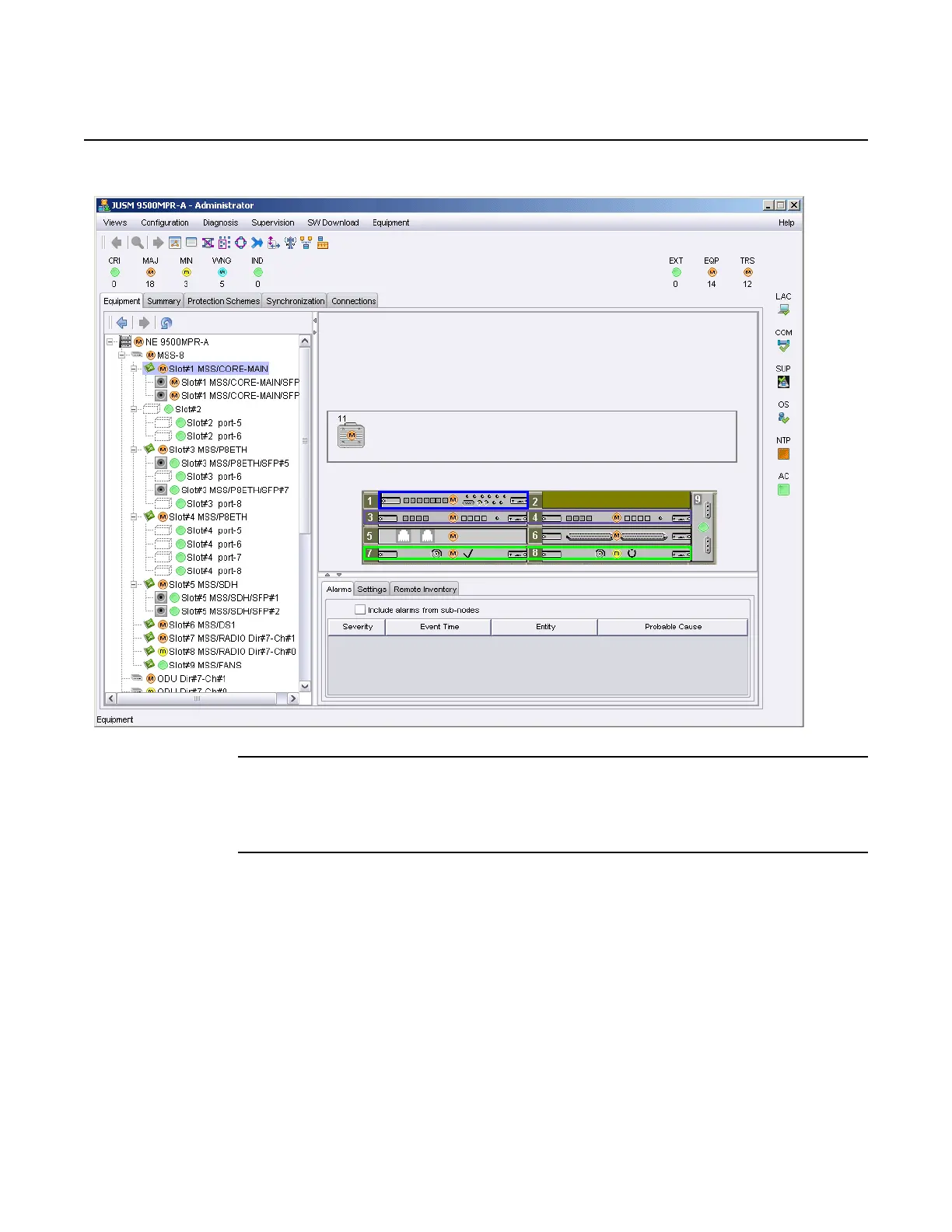

Figure 236 9500 MPR equipment tab: Core-E card selected
2. Double-click on the blue CORE-Main (Core-E), P8ETH (EAS) or EASv2 Card
or on the MSS-O.
The Core-E, EAS, or MSS CORE Main View displays.
3. Select the Ethernet Physical Settings tab.
For an example of the Core-E Main View, see Figure 237.
Release 7.0.0 3DB 19286 ACAA Issue 01
