WebEML User Manual RF Core Facing Loopback
1041

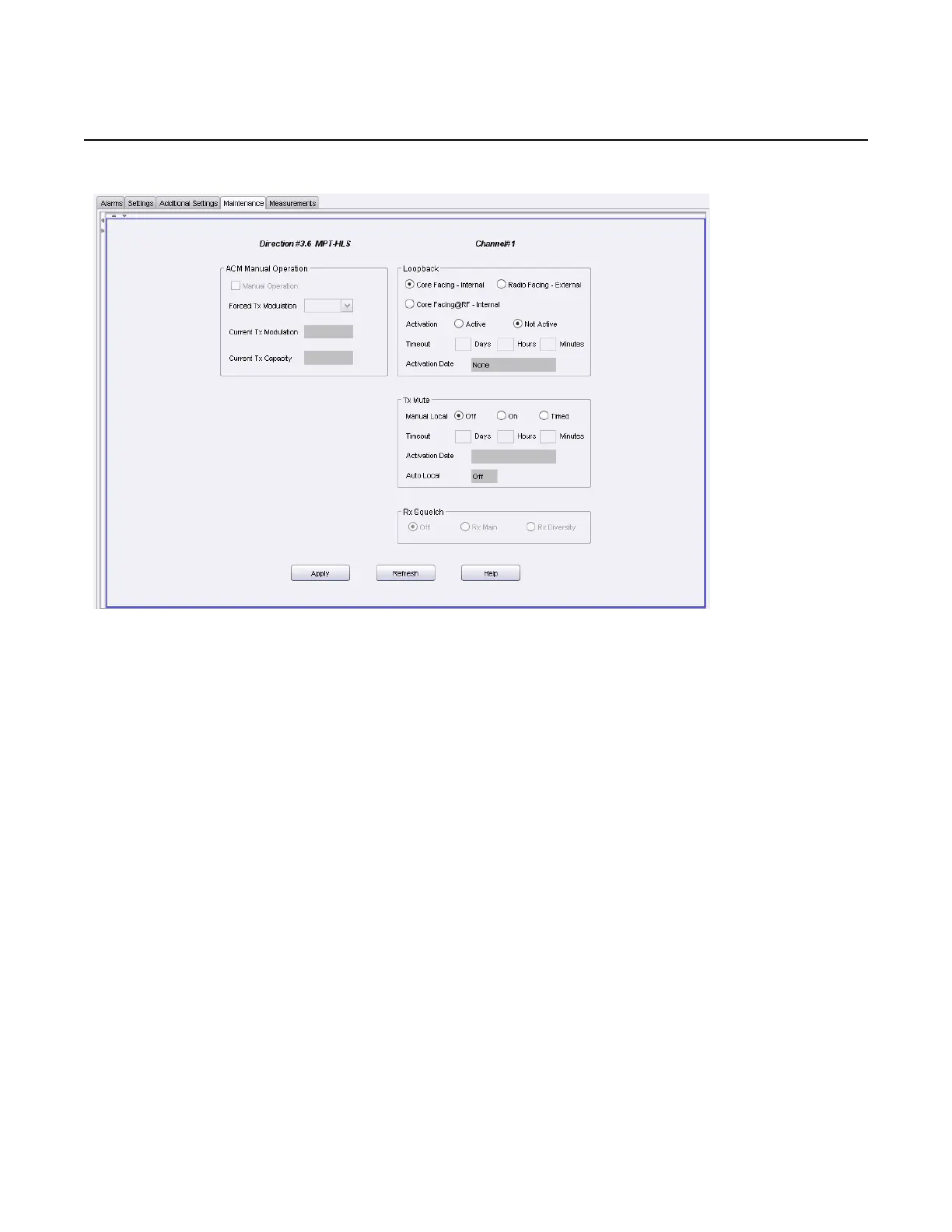

Figure 777 Radio Maintenance tab
2. Activate Core Facing@RF - Internal Loopback using the following procedure:
a. Open the appropriate main view for the configuration and select the
Settings tab. See Figure 777.
b. Record the current Tx Power value.
c. Set the Tx Power value to the maximum level.
d. In 1+1 HSB configuration, apply an RPS Lockout/forced switch to the
channel where the loopback will be activated.
e. If XPIC is active, mute the remote transmitter.
f. Select the Maintenance tab. See Figure 776.
g. If the diversity combiner is active, squelch the diversity receiver.
h. Select the Core Facing@RF - Internal radio button.
i. Select the Active radio-button in the Activation area.
j. Enter time out period (days, hours, minutes) in the Timeout Period (max 4
days) fields. At the end of this period the loopback will automatically be
deactivated.
k. Click on the Apply button.
The loopback should be active.
To deactivate an MPT-HLC/HLS Core Facing @RF - Internal Loopback
Release 7.0.0 3DB 19286 ACAA Issue 01
