Nokia 9500 MPR - Figure 142 Alarm Manager: Current Alarms Major Tab; Figure 143 Alarm Manager New Filter Window

View alarms
254
WebEML User Manual

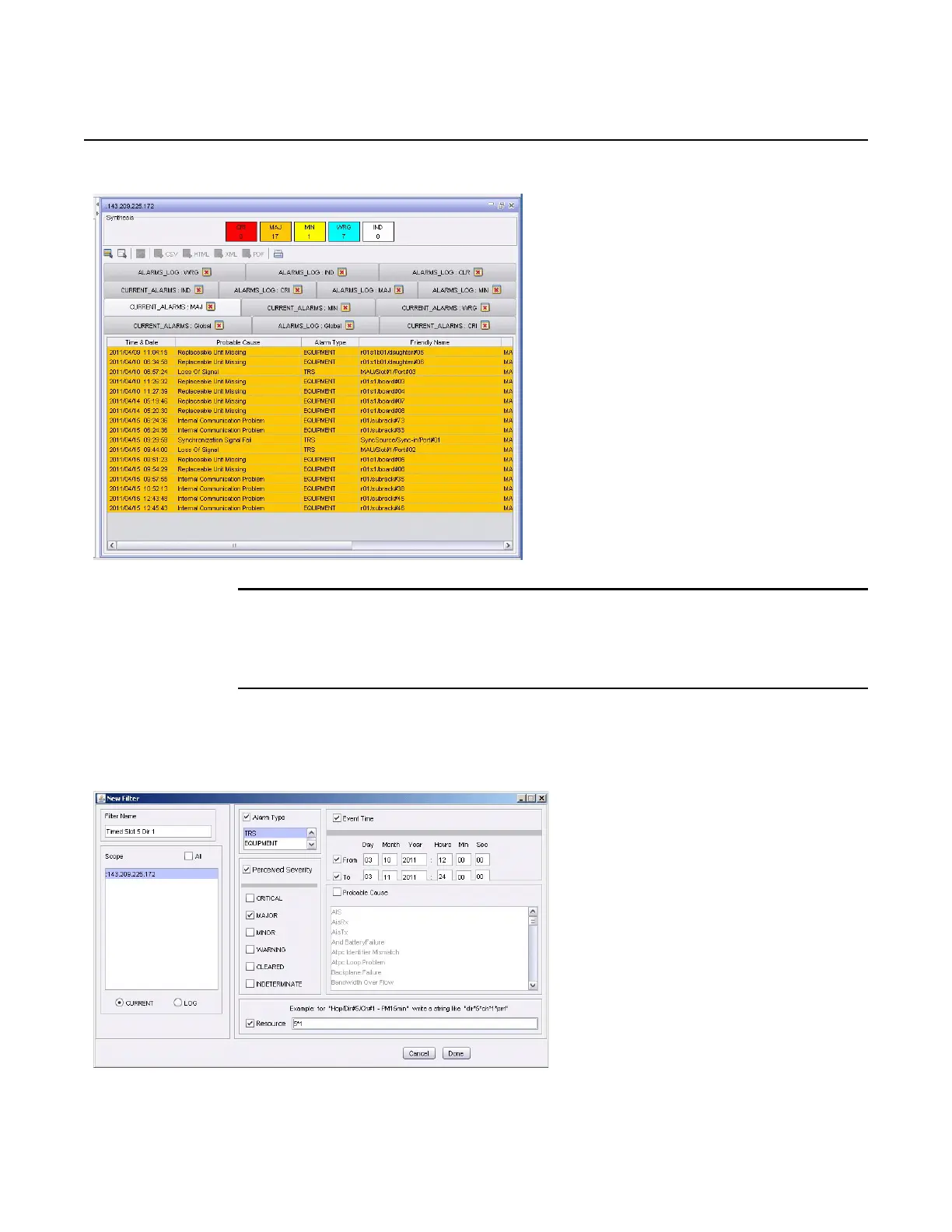

Figure 142 Alarm Manager: Current Alarms major tab
3. To select another alarm severity, either select from the Alarm Manager resource
tree area or the Synthesis pane alarm severity tabs.
To add an Alarm Manager filter
1. From the Alarm Manager Main Menu Bar, select Filters>Add a Filter.
The New Filter window opens. See Figure 143.
Figure 143 Alarm Manager New Filter window
Release 7.0.0 3DB 19286 ACAA Issue 01
