Nokia 9500 MPR - Figure 635 MPT ODU Power Source Settings Tab (MPTACC Card)

Configure radio parameters
850
WebEML User Manual

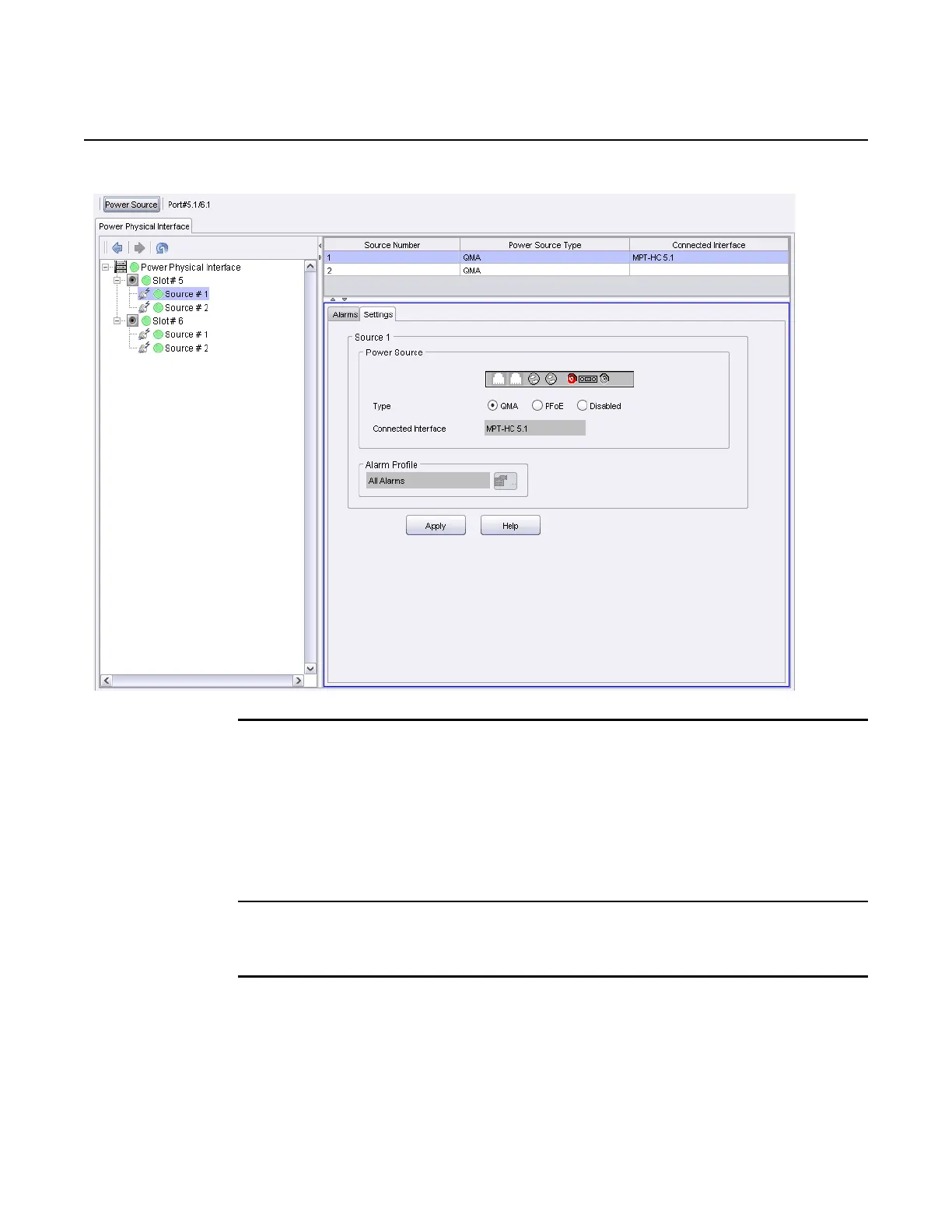

Figure 635 MPT ODU Power Source Settings tab (MPTACC card)
6. Select an action.
a. To Provision the MPT ODU co-channel XPIC configuration, go to step 7.
b. To Provision the MPT ODU 1+1 XPIC configuration, go to step 18.
c. To Provision the MPT ODU radio protection type, go to step 29
d. To Provision the radio for fixed modulation, go to step 39.
e. To Provision the radio for Adaptive Modulation, go to step 42.
7. Provision the MPT ODU co-channel XPIC configuration
Open the appropriate radio main view click on the Settings tab; see Figure 648.
8. Provision MPT ODU 1+0 Horizontal XPIC Configuration:
i. Provision 1+0 Horizontal radio channel. See step 39 or 42 detailed steps to
provision radio channel parameters.
ii. From the Option drop-down menu, choose gain configuration (Std/XPIC.
Release 7.0.0 3DB 19286 ACAA Issue 01
