Nokia 9500 MPR - Figure 537 Cross-Connection between NE E and NE H

To Next Page

To Previous Page

Provision cross connections in a mixed fiber/

microwave Ring

722

WebEML User Manual

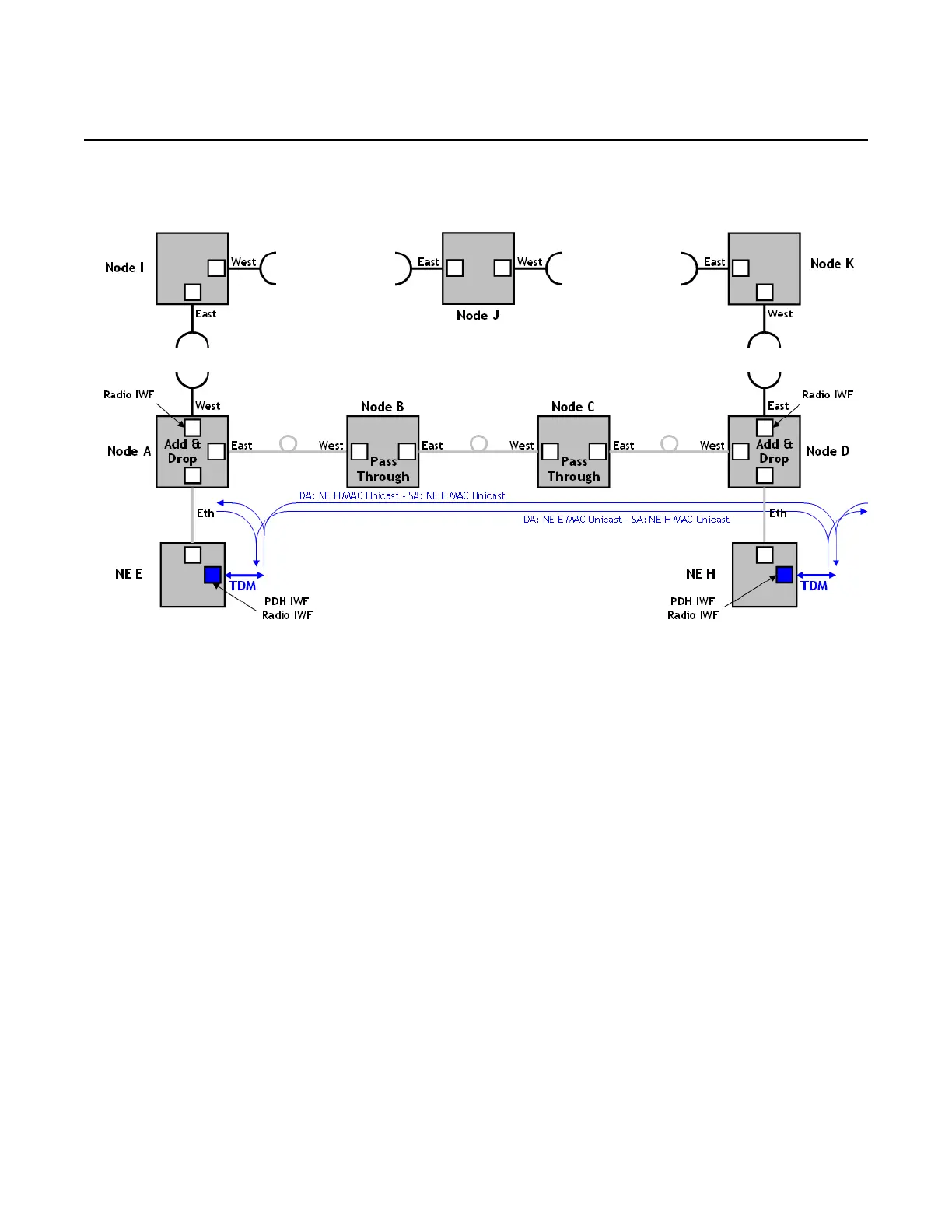

Figure 537 Cross-connection between NE E and NE H

Configure an Ethernet-Radio or Ethernet-PDH cross-connection on NE E, see

Figure 538 and Figure 539.

Release 7.0.0 3DB 19286 ACAA Issue 01
