Disable equipment
524
WebEML User Manual
To disable the spare Core card
1. Select MSS-n/Slot#2 in the resource tree area. The selected slot will highlight
in blue. This selection also highlights spare Core card in slot #2 in blue on the
graphical representation of the MSS shelf in the resource list area. See
Figure 338.

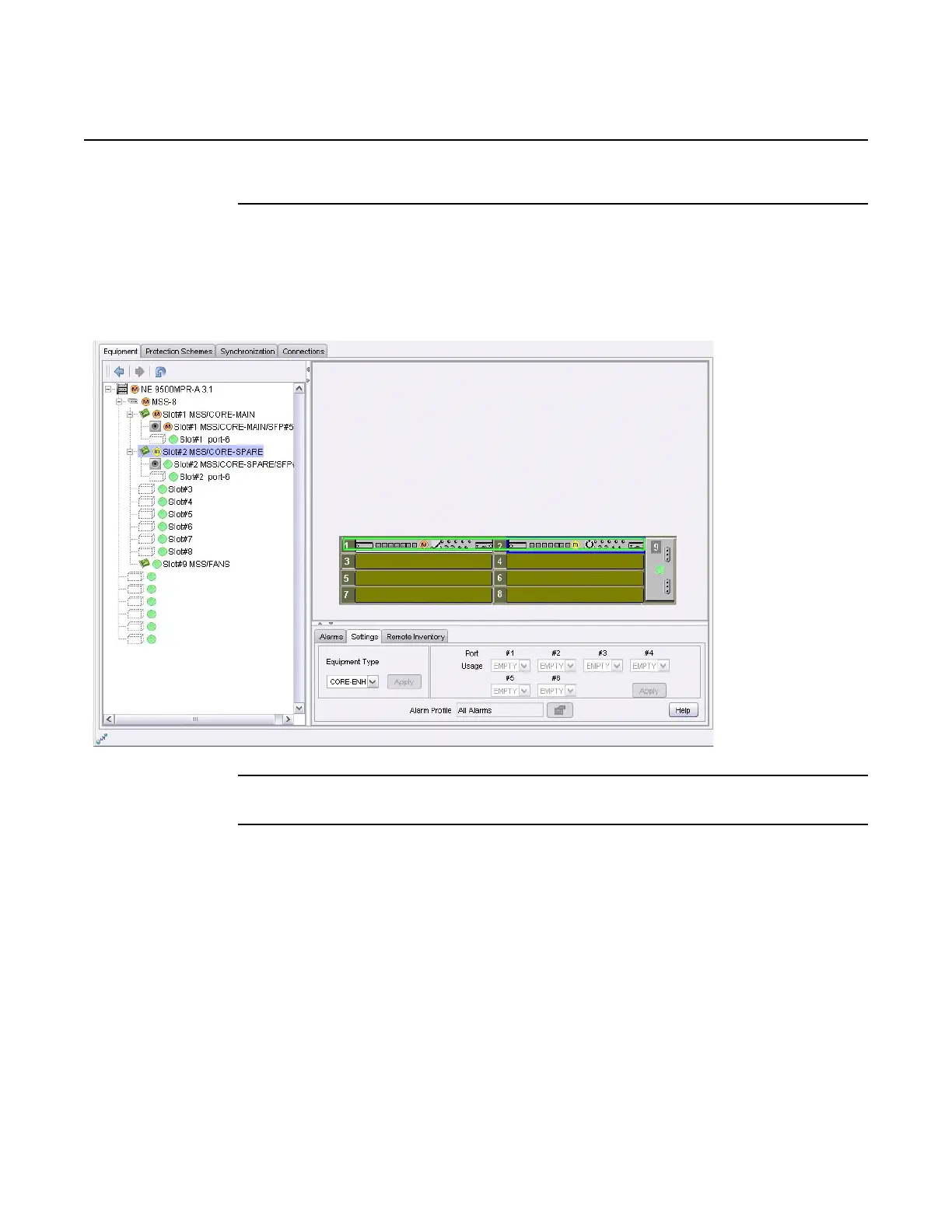

Figure 338 Enabled spare Core-E
2. Click the Settings Tab in the resource detail area.
3. From the Equipment Type drop-down menu, select EMPTY. See Figure 339.
