Nokia 9500 MPR - Figure 547 NE to NE H: Ethernet-Ring Cross-Connection on Node D

Provision cross connections in a mixed fiber/
microwave Ring
732
WebEML User Manual

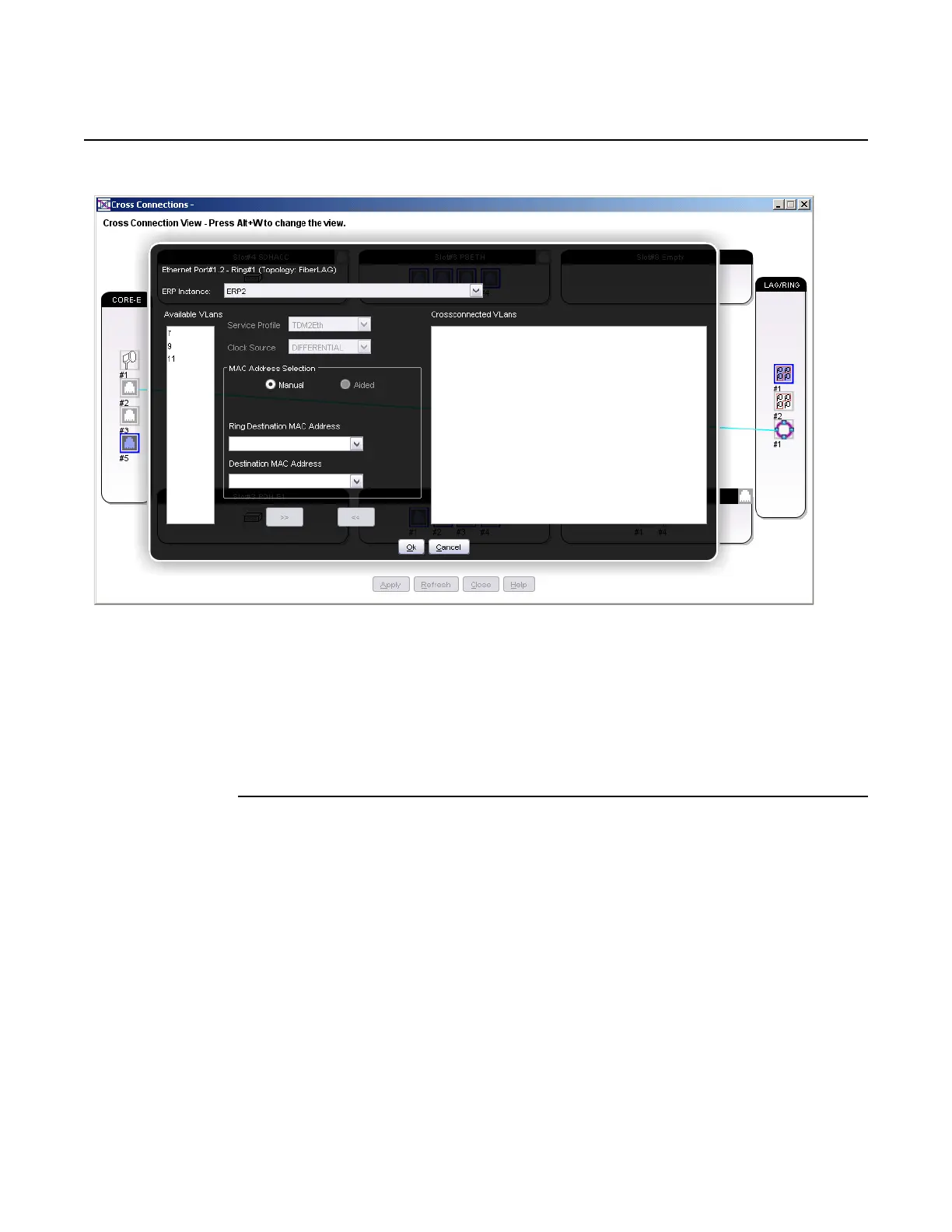

Figure 547 NE to NE H: Ethernet-Ring cross-connection on Node D
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: NE E Unicast MAC address
e. Enter the Destination MAC address: NE H Unicast MAC address
To provision a cross-connection between NE E and NE G
1. Both traffic end points belong to the fiber chain; see Figure 548.
