WebEML User Manual Deprovision equipment ports

463

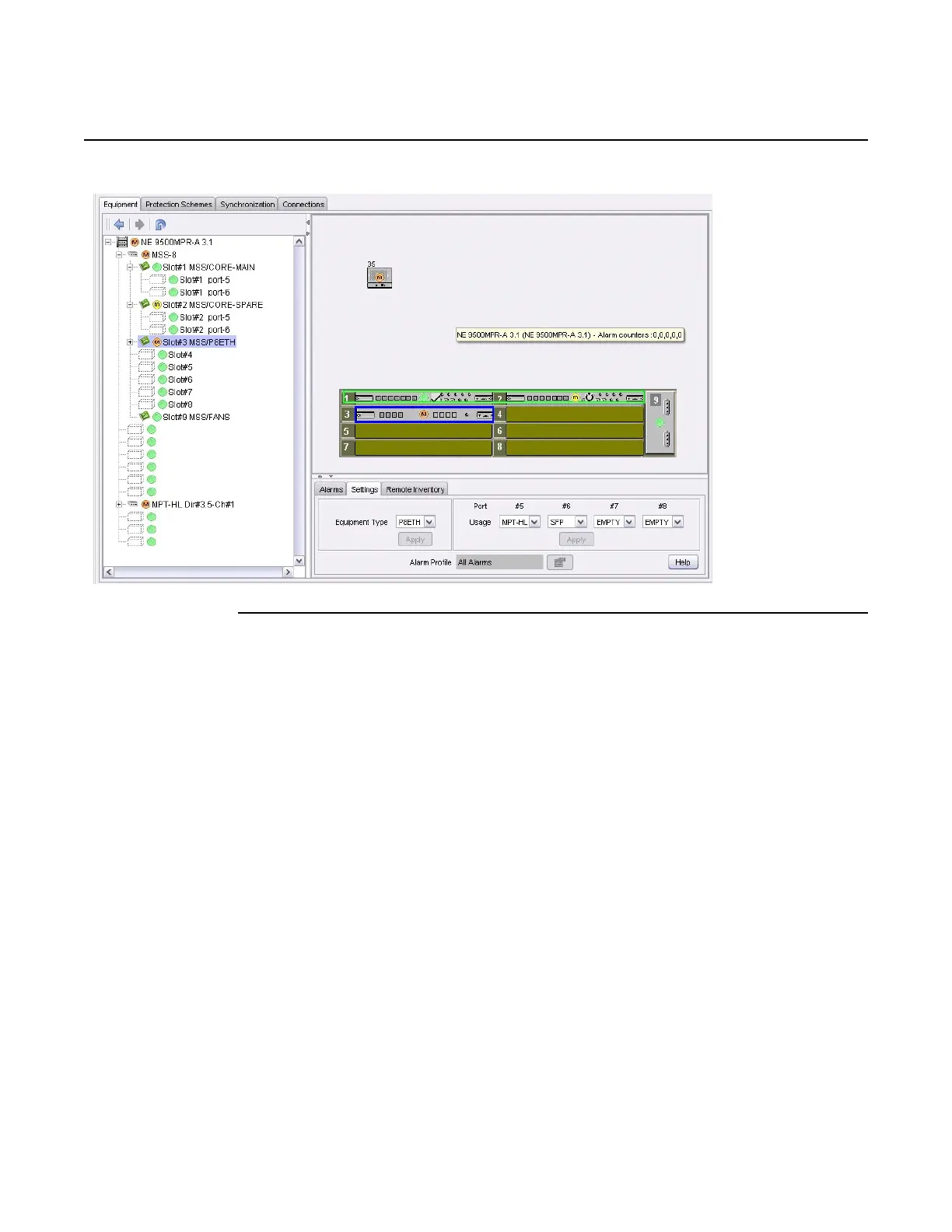

Figure 279 Resource list area: P8ETH selected

3. From the Port # (5-8) Usage drop-down menu, select port usage type Empty.

See Figure 280 for P8ETH and Figure 281 for EASv2.

Release 7.0.0 3DB 19286 ACAA Issue 01
