Nokia 9500 MPR - Figure 315 Select Slot to Enable SDHACC or SDHCHANN

To Next Page

To Previous Page

WebEML User Manual Enable equipment

499

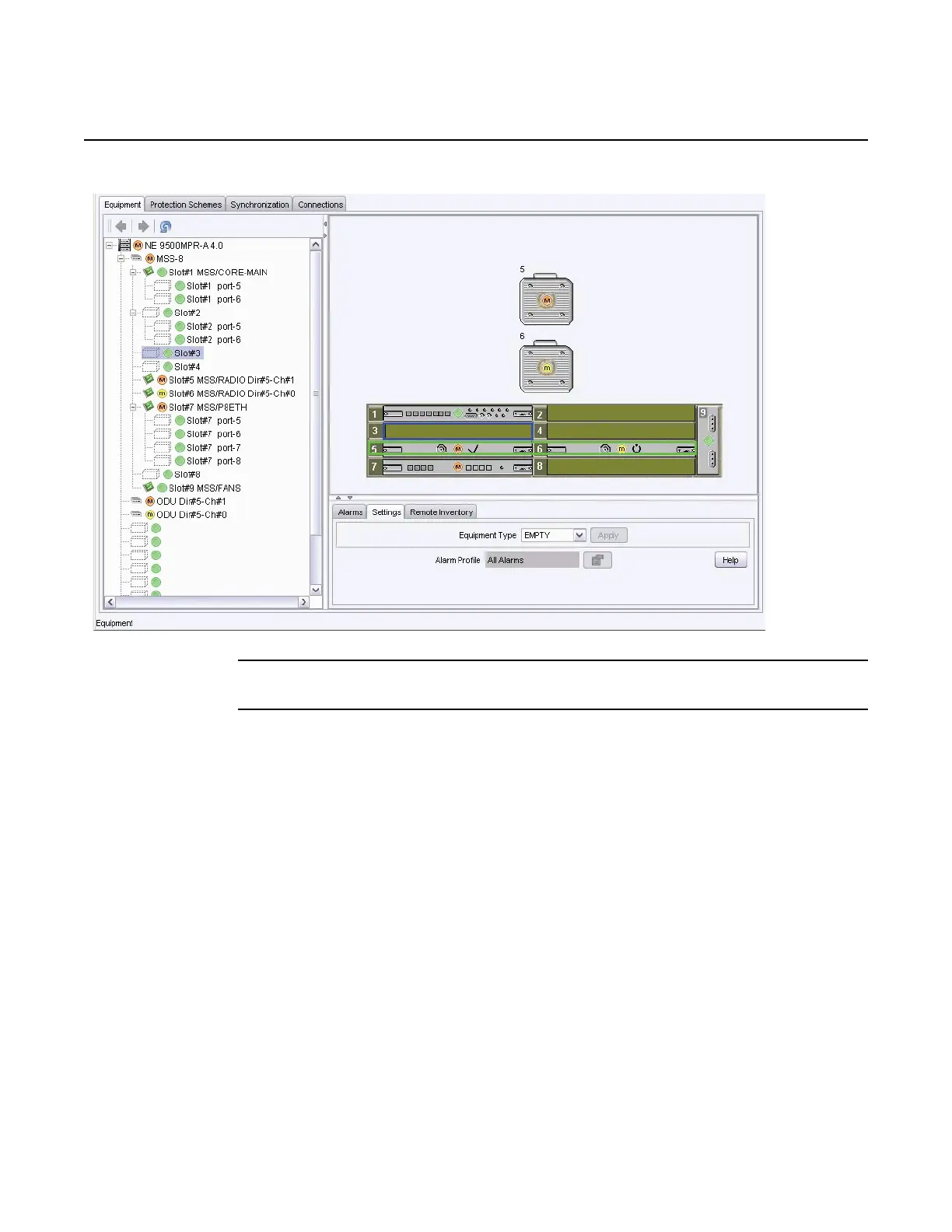

Figure 315 Select slot to enable SDHACC or SDHCHANN

2. Click the Settings Tab in the resource detail area.

3. From the Equipment Type drop-down menu, select SDHACC (shown in the

examples) or SDHCHANN (ETSI market only). See Figure 316.

Release 7.0.0 3DB 19286 ACAA Issue 01
