WebEML User Manual Core Facing PDH/SDH Tributary Loopback
959

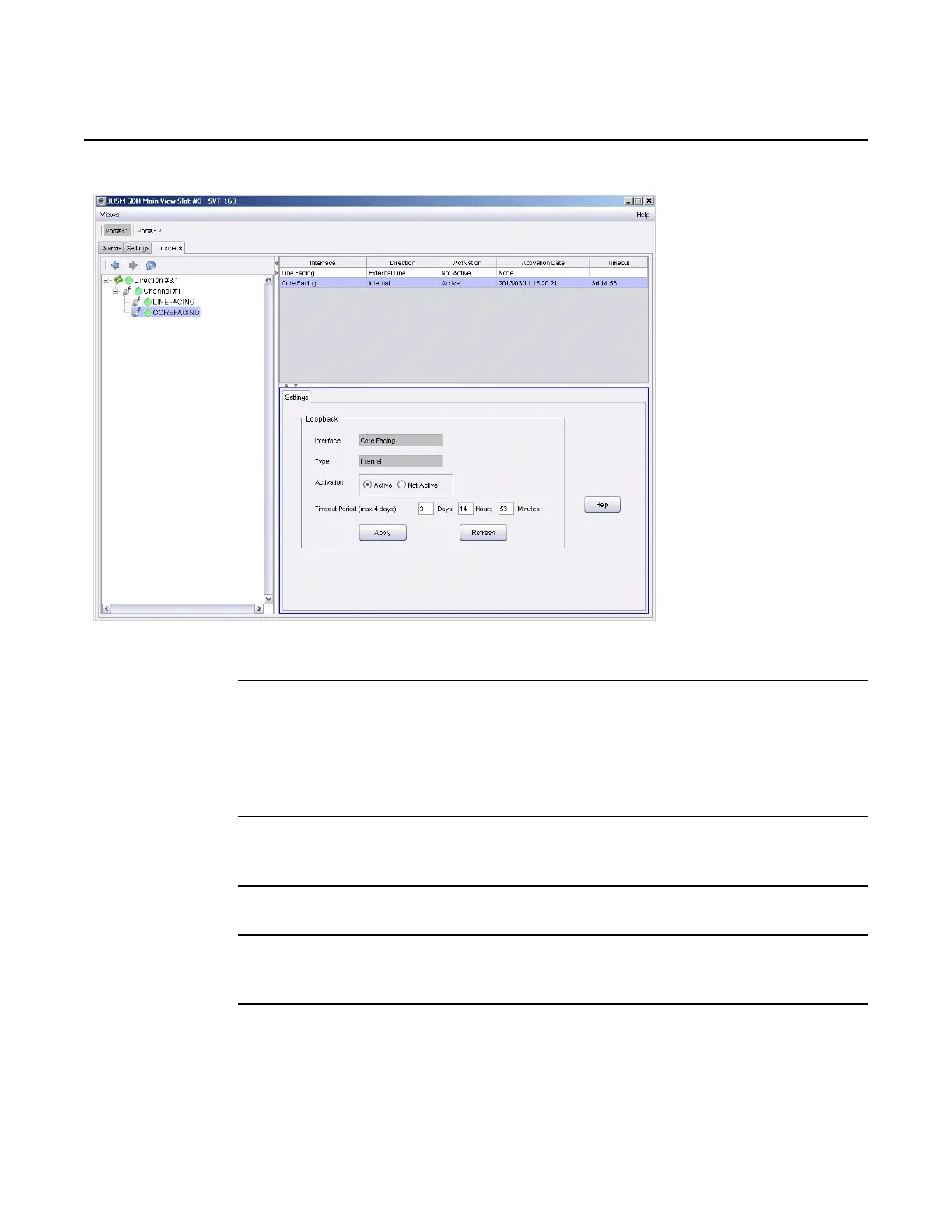

Figure 721 Core Facing SDH Tributary Loopback active
To deactivate a Core Facing PDH/SDH Tributary Loopback
1. In the main equipment window, double-click the PDH/SDH Transponder Card
associated with the tributary to perform Core Facing PDH/SDH Tributary
Loopback. For DS1 loopback, see Figure 715. For DS3 loopback,
see Figure 716. For SDH loopback, see Figure 717.
The PDH/SDH Main View for the selected PDH/SDH transponder opens.
2. Select Loopback tab. For DS1 or DS3 loopback, see Figure 720. For SDH
loopback, see Figure 721.
3. For SDH loopback, select Port#s.n. See Figure 721.
4. For PDH loopback, select Port#nn Internal from the resource tree area; DS1
Port#1-32 Internal or DS3 Port#1-2 Internal. See Figure 720.
5. For SDH loopback, select COREFACING from the resource tree area. See
Figure 721.
