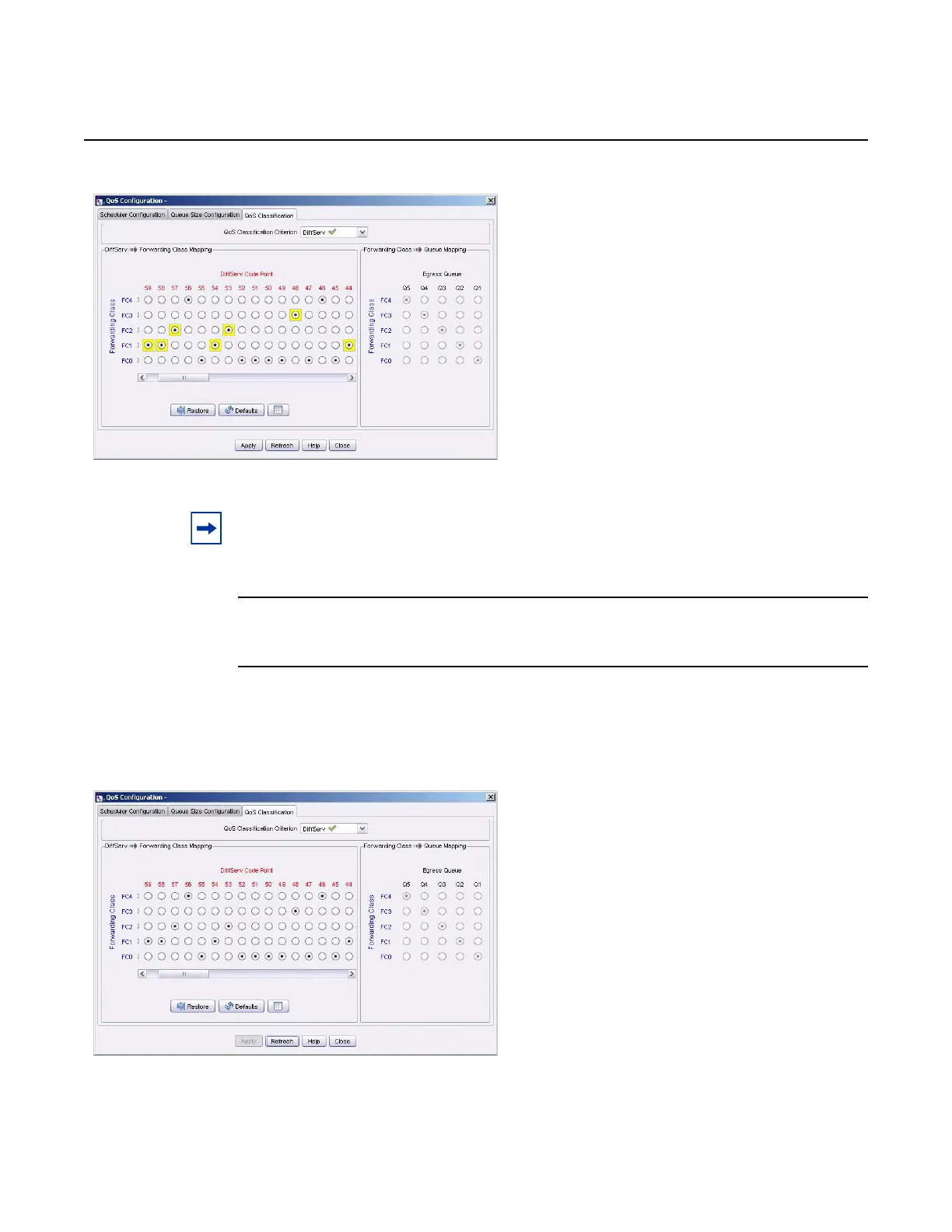

Figure 73 Provision DiffServ DSCP to Internal Forwarding Class Mapping
2. Repeat the previous step to provision additional DiffServ DSCP to Forwarding
Class Mapping.
3. Save changes to NE?
a. If yes, click on the Apply button and click Yes in the Apply Data to NE
window. The QoS Classification tab updates. See Figure 74
Figure 74 Provisioned DiffServ DSCP to Internal Forwarding Class Mapping
b. If no, see To restore Saved Queue Size values.
Note: The background of modified DiffServ DSCP to Forwarding Class field is displayed in
yellow.
