WebEML User Manual Configure radio parameters
815
Open the appropriate radio main view depending on your radio configuration
and select the Settings tab; see Figure 615.

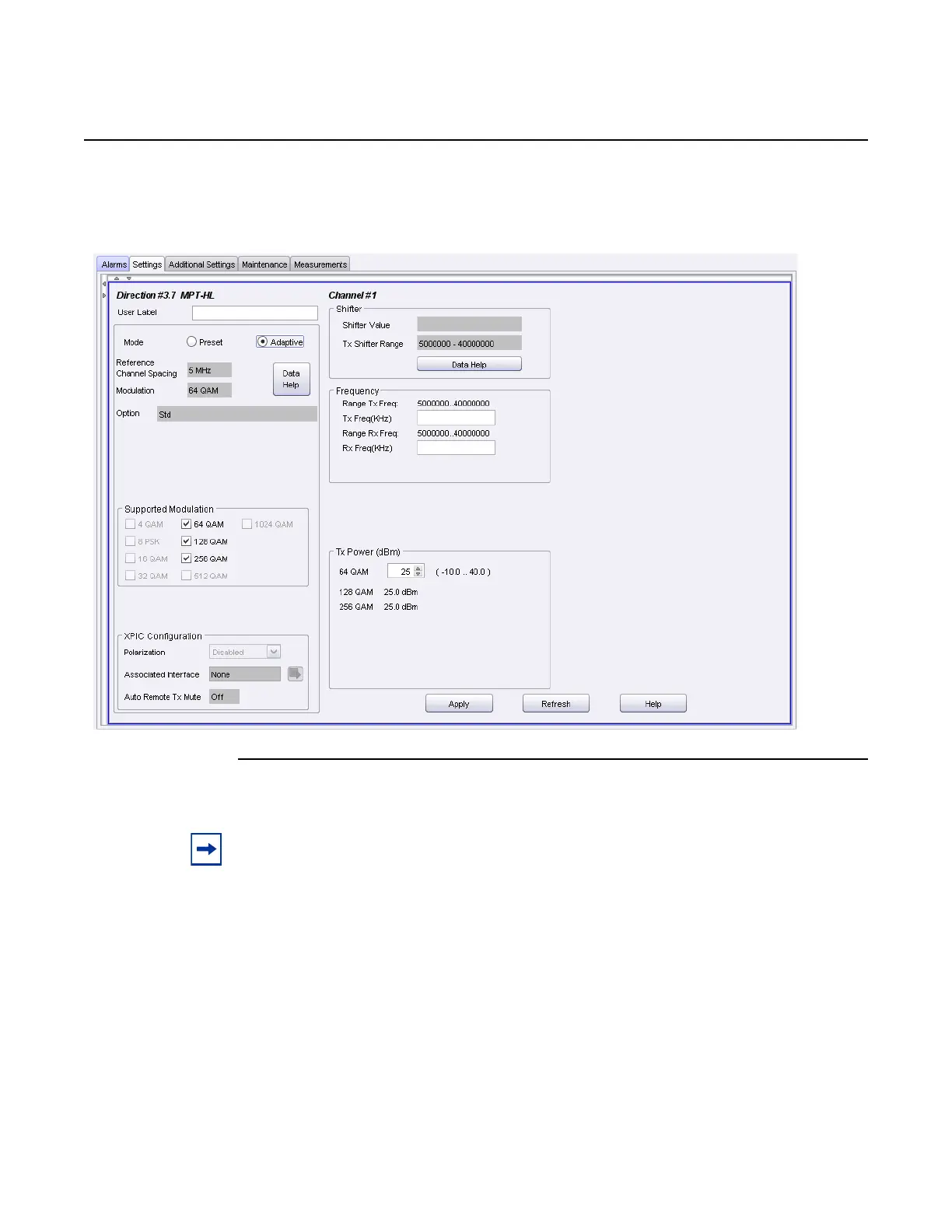

Figure 615 MPT-HLC Settings tab for adaptive modulation
33. Provision MPT-HLC radio port:
i. In the Mode field, select the Adaptive radio button.
ii. Click on the Data Help button under the Mode drop-down menu. The Data
Help window opens.
iii. In the Data Help window, double-click on the table row for the desired
reference modulation scheme, and option. The reference modulation will be
the lowest available modulation scheme in the supported modulation range.
Note: Depending on the modem profile selected, the Tx power may become out of range.
If this occurs, provision the Tx power to the desired level or to one supported by the modem
profile to clear the warning message.
Release 7.0.0 3DB 19286 ACAA Issue 01
