Administer VLAN configuration

196

WebEML User Manual

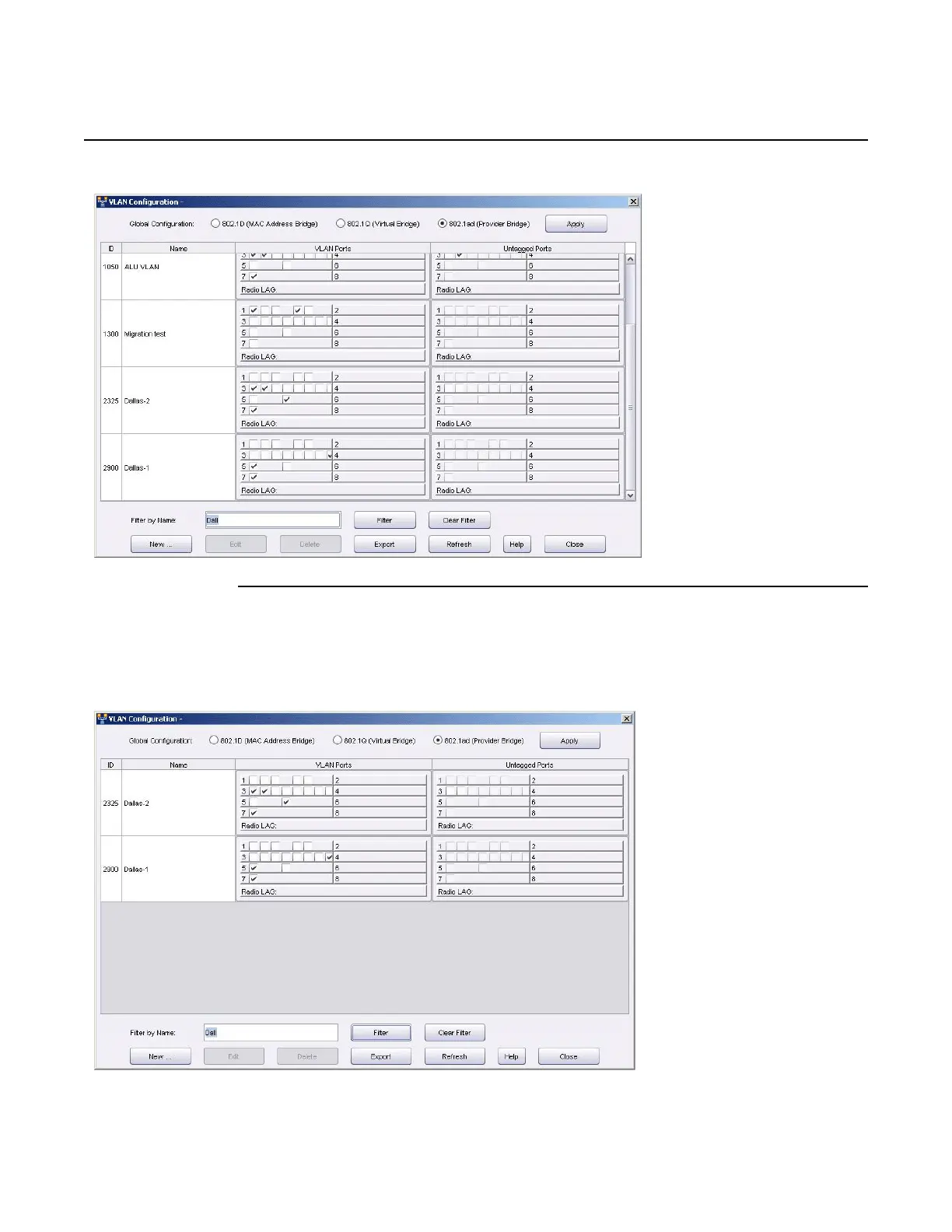

Figure 97 Filter VLAN configuration table

2. Click Filter.

The VLAN configuration table is filtered using the text string entered in the Filter

by Name field. See Figure 98.

Figure 98 VLAN Configuration table filtered

Release 7.0.0 3DB 19286 ACAA Issue 01
