Administer L1/L2 radio and L2 Ethernet LAG
ports
308
WebEML User Manual

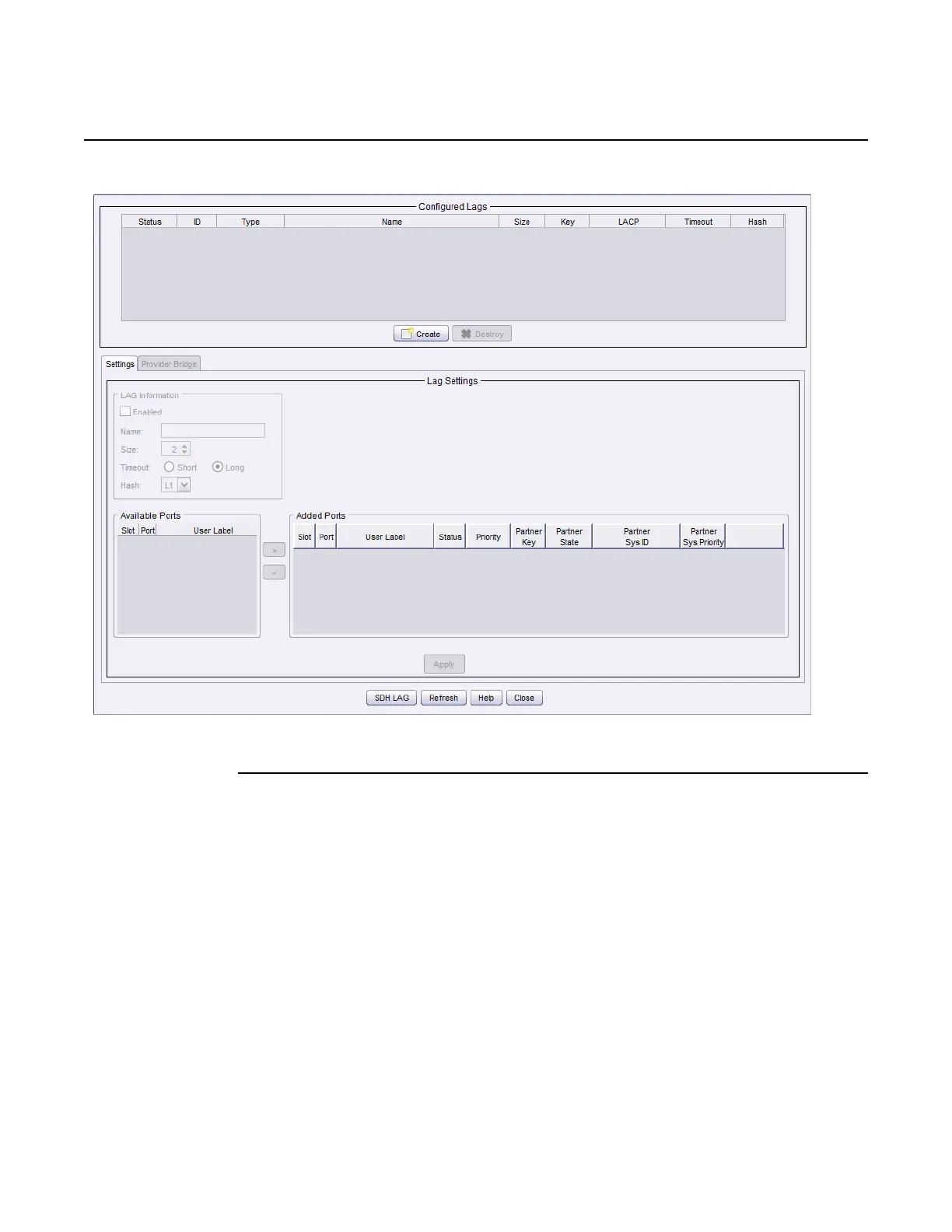

Figure 167 LAG Configuration tool
To provision an L1 Radio LAG port
1. Using the craft terminal, verify all radio ports, to be members of the L1 Radio
LAG port, are provisioned correctly. Correct any radio port provisioning that
does not correspond to the desired radio performance characteristics. Verify the
following parameters:
− modulation type (mode)
− reference channel spacing
− modulation
− option (presetting or adaptive modulation)
− Synchronization SSM disabled
Radio ports with XPIC profiles can be part of the same LAG as radio ports with
non-XPIC profiles. All other radio parameters must be the same.
Release 7.0.0 3DB 19286 ACAA Issue 01
