WebEML User Manual Administer L1/L2 radio and L2 Ethernet LAG
ports
315

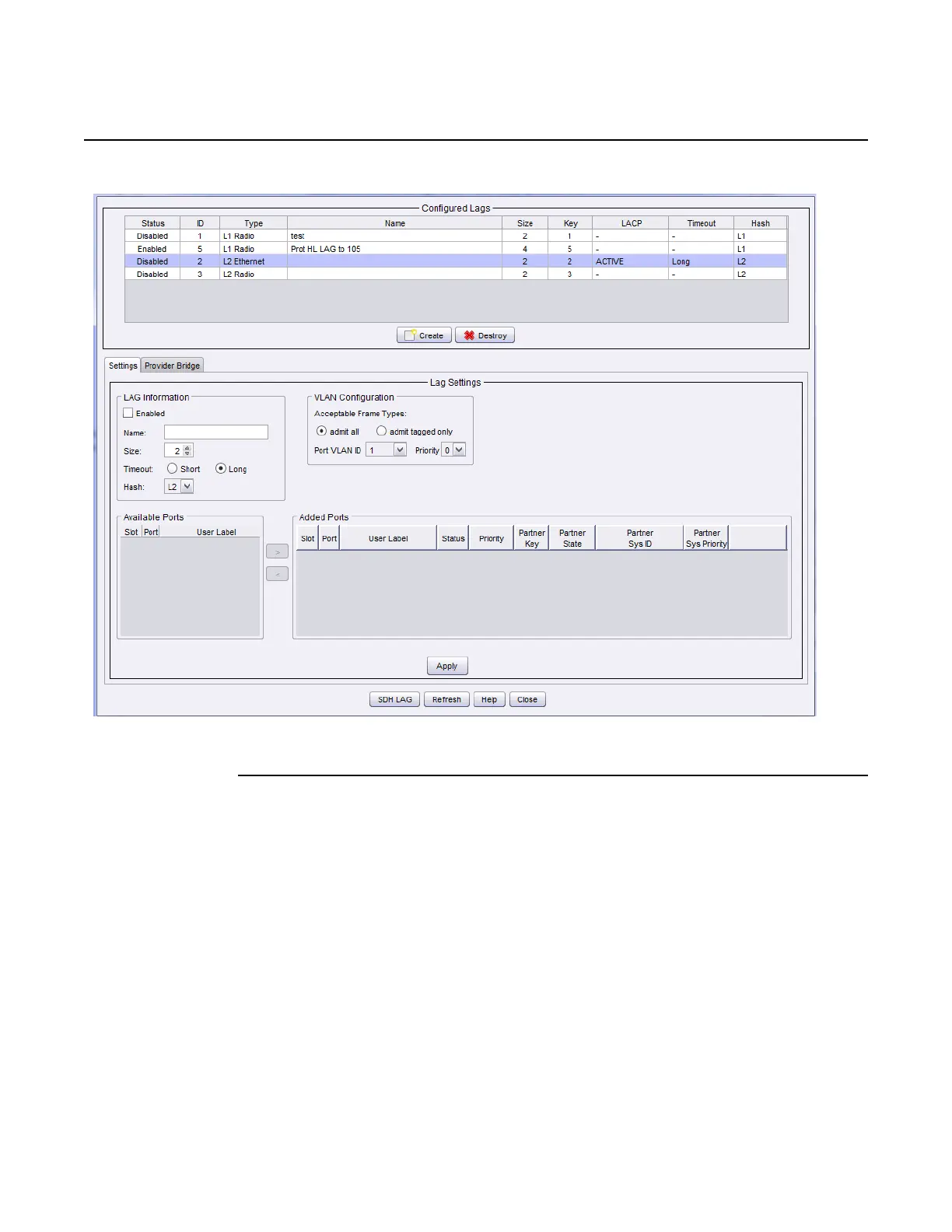

Figure 169 L2 Ethernet LAG created
To add Ethernet or radio ports to LAG port
1. Using the LAG Configuration Tool Settings tab, add Ethernet/Radio ports to LAG
port using the following procedure:
To add L1 Radio port to LAG port, see Figure 170.
To add L2 Radio port to LAG port, see Figure 171.
To add L2 Ethernet port to LAG port, see Figure 172.
