Administer VLAN configuration

192

WebEML User Manual

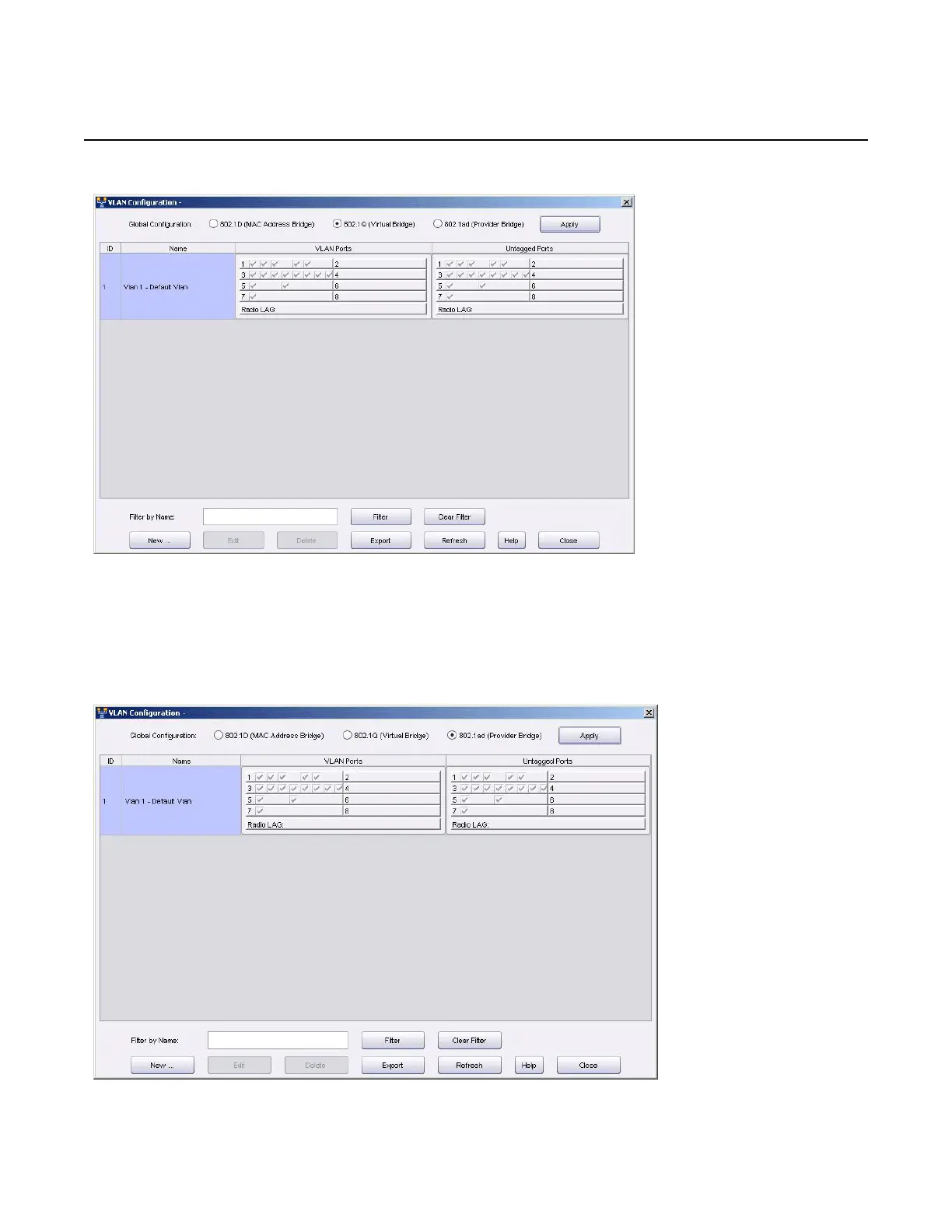

Figure 92 VLAN Configuration provisioned 802.1Q

c. To provision 802.1ad provider bridge, select the 802.1ad (Provider Bridge)

radio button and click on the Apply button.

The VLAN Configuration window updates, the default VLAN 1 is displayed.

See Figure 93.

Figure 93 VLAN Configuration provisioned 802.1ad

Release 7.0.0 3DB 19286 ACAA Issue 01
