WebEML User Manual Administer VLAN configuration
193
To create a VLAN or S-VLAN
1. Select New... button. See Figure 92.
The Create VLAN window opens. See Figure 94.

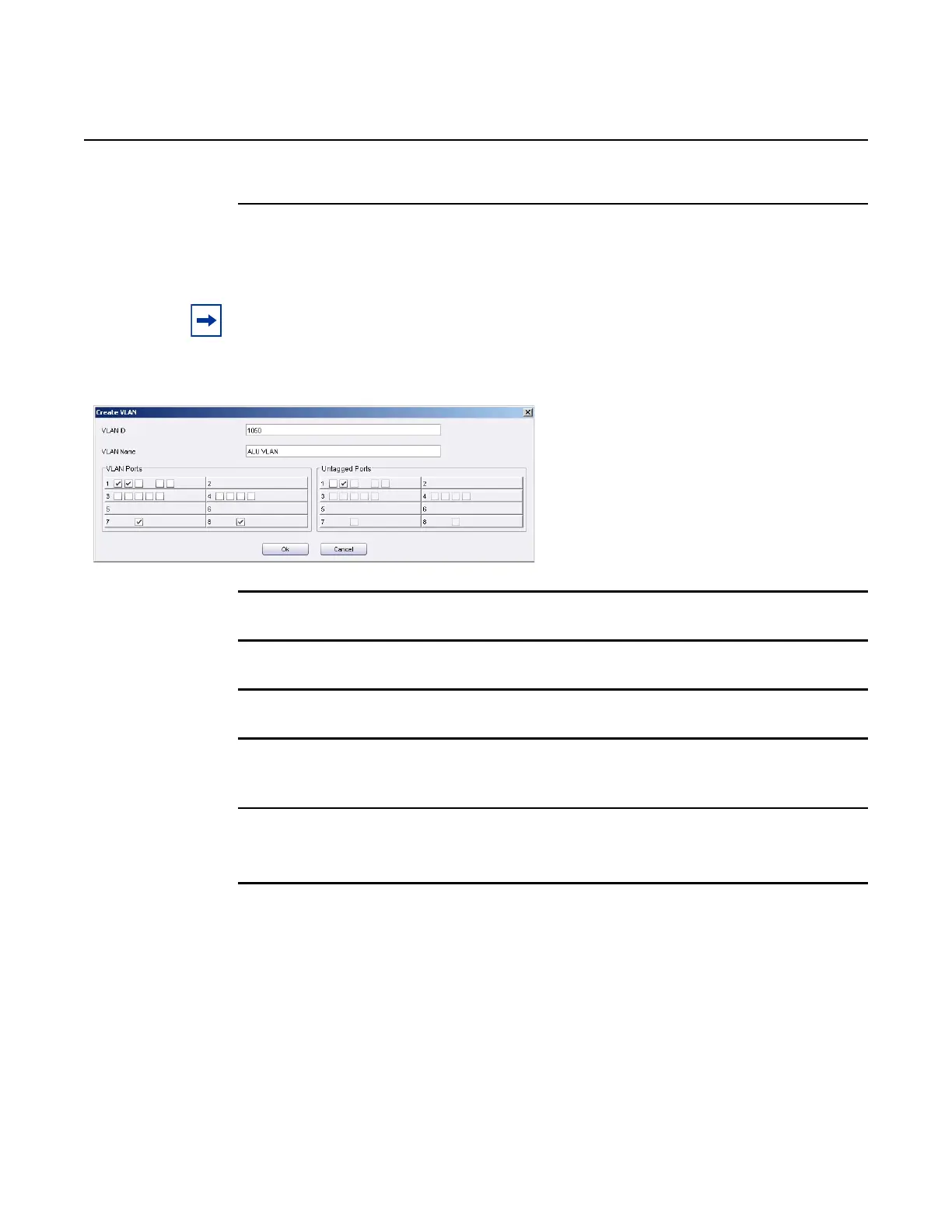

Figure 94 Create VLAN window
2. Enter VLAN ID number [2-4080].
3. Enter VLAN Name (text string up to 32 character).
4. From the VLAN Ports area, select the VLAN Ports to be members of the VLAN.
5. From the Untagged Ports area, select the User Ethernet ports to remove VLAN
ID from the egress Ethernet frame.
6. Click OK.
The Create VLAN window closes. Information window opens.
7. Click OK.
The new VLAN is added to the VLAN Configuration table. See Figure 95.
Note: In Provider Bridge mode, the window is called Create S-VLAN.
