Administer L1/L2 radio and L2 Ethernet LAG
ports
324
WebEML User Manual

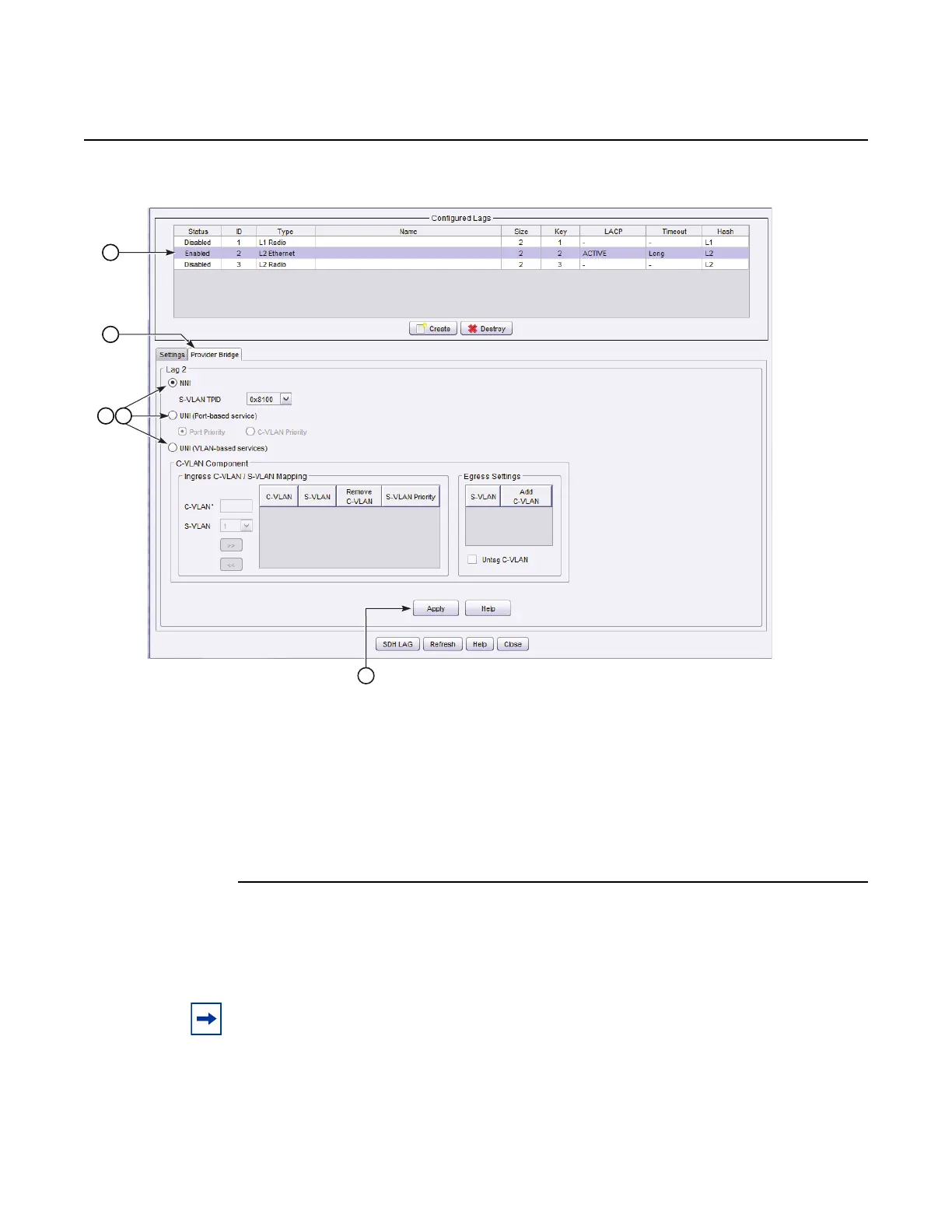

Figure 177 Provider bridge tab
iv. Configure port type parameters:
• for NNI, choose the S-VLAN TPID from the drop-down menu
• for UNI (port-based), choose Port Priority or C-VLAN Priority
• for UNI (VLAN-based), configure C-VLAN/S-VLAN mapping and
egress settings
v. Click Apply.
5. Administer VLAN configuration
Using the LAG Configuration Tool Settings tab, administer VLAN Configuration
using the following procedure: See Figure 178.
Note: To assign a Port VLAN other than VLAN 1, the Port VLAN must be created and
assigned using the VLAN configuration tool. See Administer VLAN configuration for detailed
instruction to create and assign VLAN.
Release 7.0.0 3DB 19286 ACAA Issue 01
