WebEML User Manual Administer L1/L2 radio and L2 Ethernet LAG
ports
325

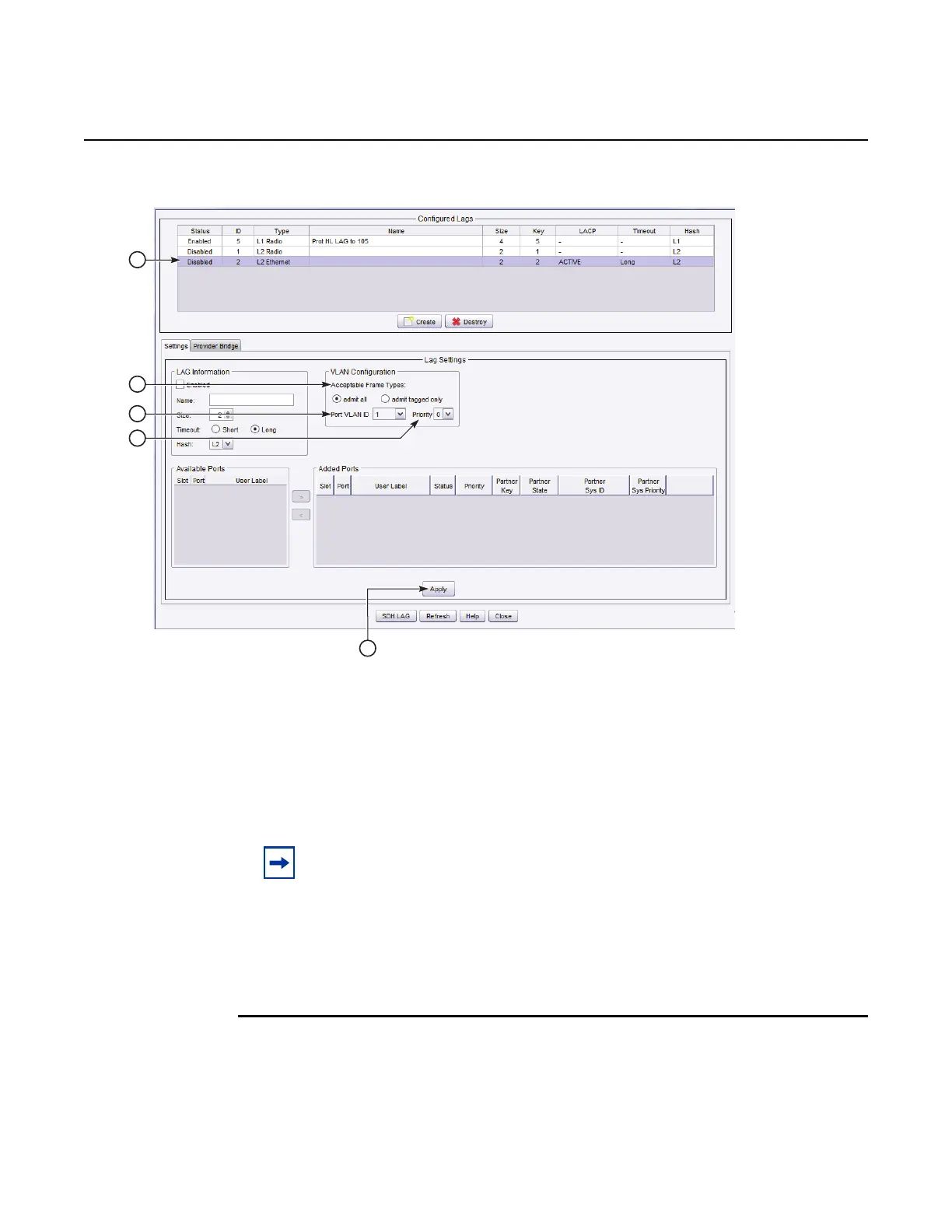

Figure 178 Administer Ethernet LAG VLAN configuration
i. From the Configured LAGs pane, select LAG to administer VLAN
Configuration.
ii. From the VLAN Configuration pane, in the Acceptable Frame Types field,
select: (admit all or admit tagged only).
iii. If admit all is selected, then provision Port VLAN ID (1 to 4080).
iv. If admit all is selected, then provision Priority (0 to 7).
v. Click Apply.
To destroy an L2 Ethernet or L1/L2 Radio LAG port
1. Using the craft terminal, verify L2 Ethernet or L1/L2 Radio LAG port, to be
destroyed, is not associated with any of the following:
− Cross-Connections
Note: VLAN ID must be provisioned with the VLAN Configuration tool prior to
provisioning VLAN Configuration.
Release 7.0.0 3DB 19286 ACAA Issue 01
