InterruptControl
XINT3CR(15:0)
Latch
Mux
GPIOXINT3SEL(4:0)
DMA
XINT3
InterruptControl
XINT4CR(15:0)
Latch
Mux
GPIOXINT4SEL(4:0)
XINT4
InterruptControl
XINT5CR(15:0)
Mux
GPIOXINT5SEL(4:0)
XINT5
InterruptControl
XINT6CR(15:0)
Mux
GPIOXINT6SEL(4:0)
XINT6
InterruptControl
XINT7CR(15:0)
Mux
GPIOXINT7SEL(4:0)
XINT7
DMA
DMA
DMA
DMA
96Interrupts
PIE
INT1
to
INT12
C28
Core
GPIO32.int
GPIO63.int
GPIO
Mux
Latch
Latch
Latch
Peripheral Interrupt Expansion (PIE) www.ti.com
144
SPRUI07–March 2020
Submit Documentation Feedback
Copyright © 2020, Texas Instruments Incorporated
System Control and Interrupts

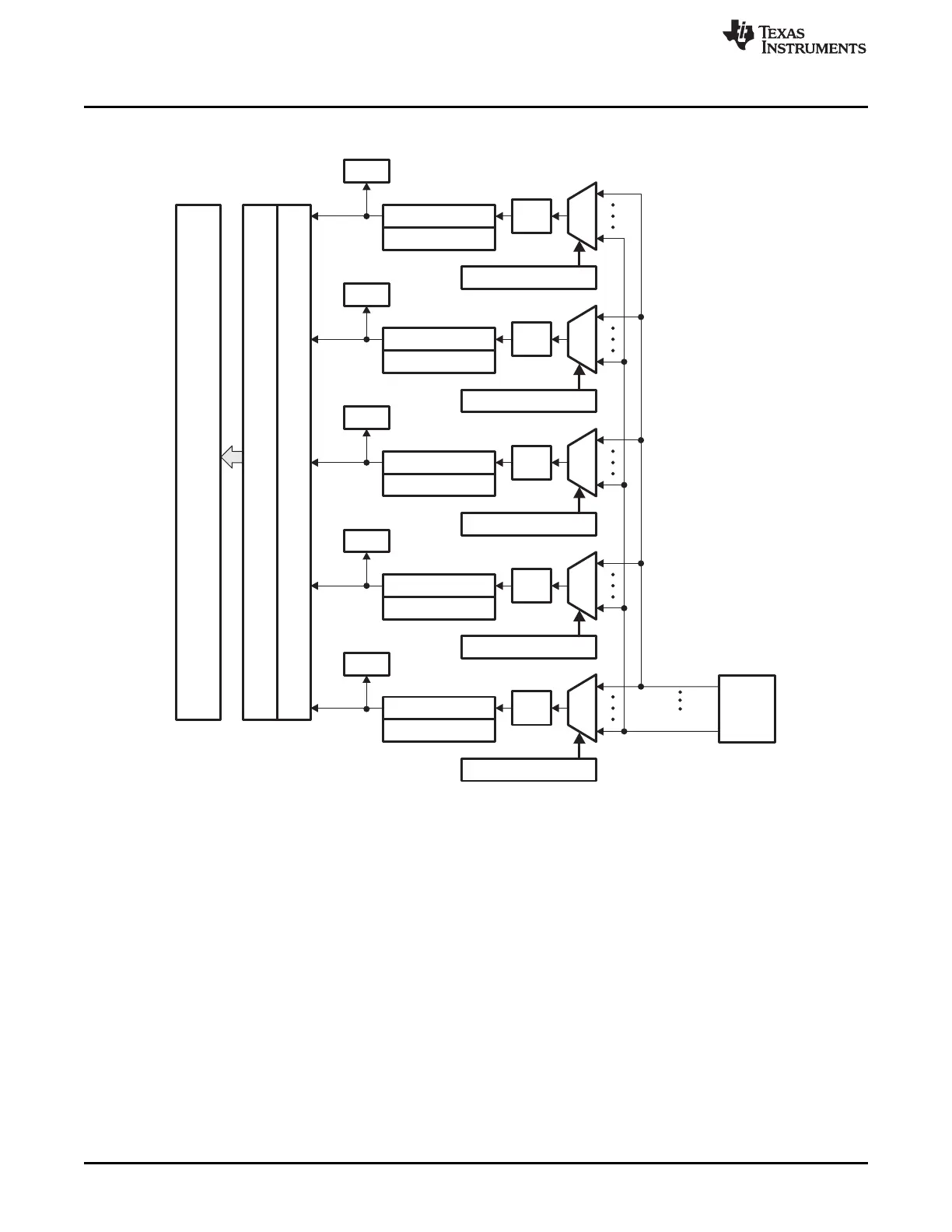

Figure 1-82. PIE Interrupt Sources and External Interrupts (XINT3 – XINT7)
