CTR=0
CTR=CMPB
X
EN
SyncOut
Phase reg
Ext SyncIn
(optional)
EPWM1A
EPWM1B
SyncOut
Phase reg
CTR=CMPB
CTR=0
X
EN
EPWM2B
EPWM2A
Slave
Master
SyncIn
SyncIn
1
2
Φ=0°
Φ=0°
www.ti.com
Applications to Power Topologies
275
SPRUI07–March 2020
Submit Documentation Feedback
Copyright © 2020, Texas Instruments Incorporated
Enhanced Pulse Width Modulator (ePWM) Module

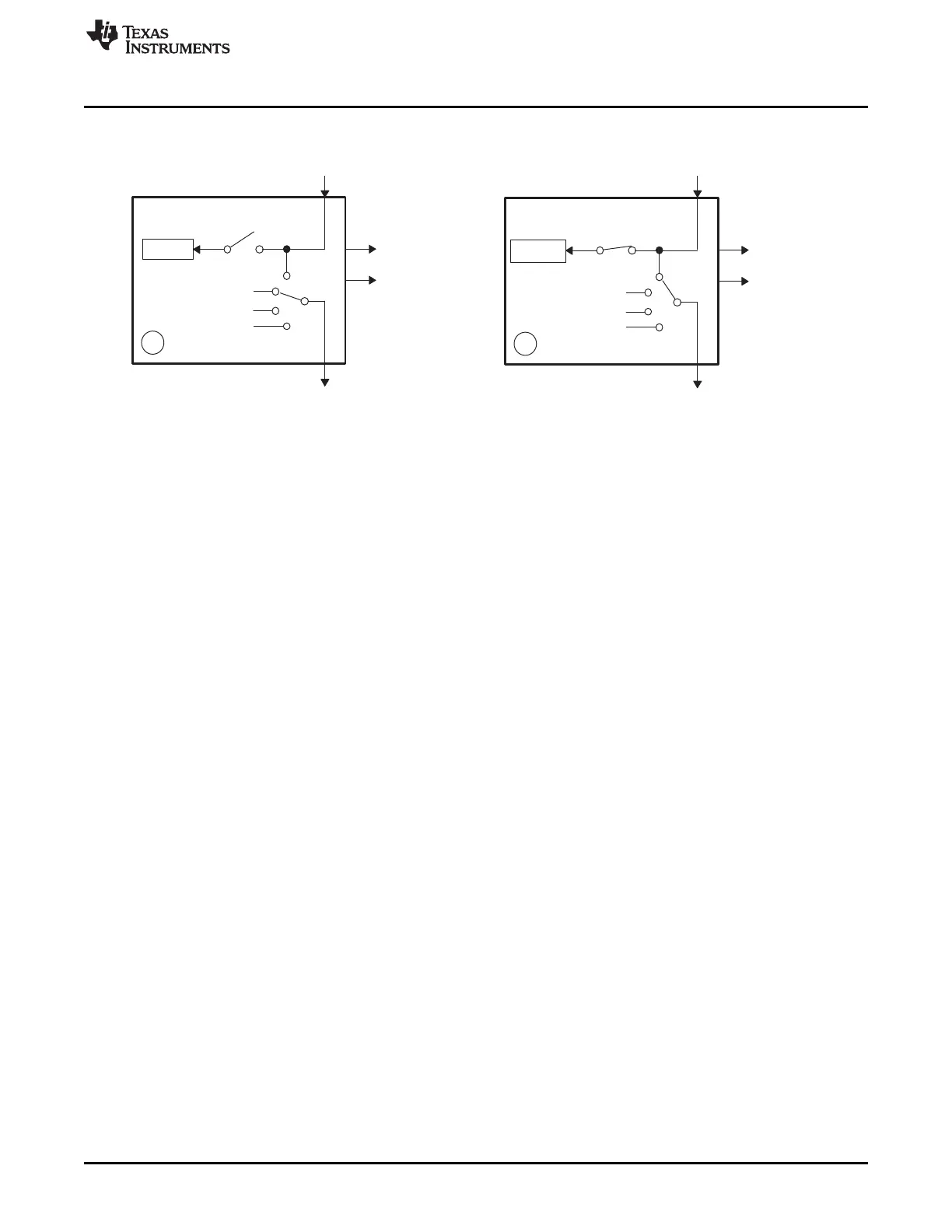

Figure 3-46. EPWM1 Configured as a Typical Master, EPWM2 Configured as a Slave
3.3.3 Controlling Multiple Buck Converters With Independent Frequencies
One of the simplest power converter topologies is the buck. A single ePWM module configured as a
master can control two buck stages with the same PWM frequency. If independent frequency control is
required for each buck converter, then one ePWM module must be allocated for each converter stage.
Figure 3-47 shows four buck stages, each running at independent frequencies. In this case, all four ePWM
modules are configured as Masters and no synchronization is used. Figure 3-48 shows the waveforms
generated by the setup shown in Figure 3-47; note that only three waveforms are shown, although there
are four stages.
