Texas Instruments TMS320 2833 Series

0x0000
0xFFFF
TBCTR[15:0]
CMPA
(value)
CMPB
(value)
TBPHS
(value)
TBPRD
(value)
CTR = CMPA
CTR = CMPB
EPWMxSYNCI
www.ti.com ePWM Submodules
241
SPRUI07–March 2020
Submit Documentation Feedback
Copyright © 2020, Texas Instruments Incorporated
Enhanced Pulse Width Modulator (ePWM) Module

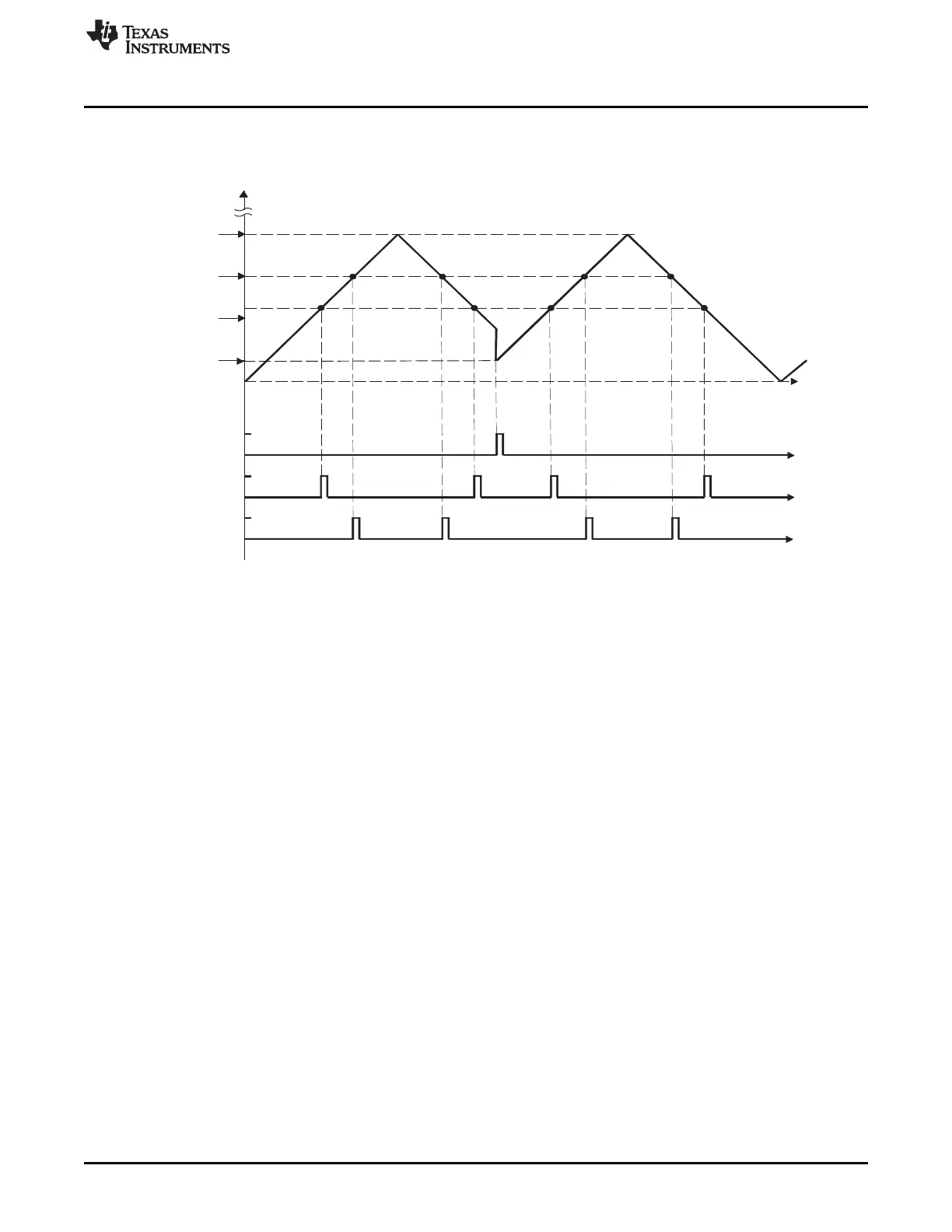

Figure 3-17. Counter-Compare Events In Up-Down-Count Mode, TBCTL[PHSDIR = 1] Count Up On
Synchronization Event
