Cache Controller
UG0331 User Guide Revision 15.0 143
4.3 How to Use Cache Controller
Cache Controller can be configured statically by using the Libero design software. The following figure
shows the Cache Controller enable option, cache region size selection.

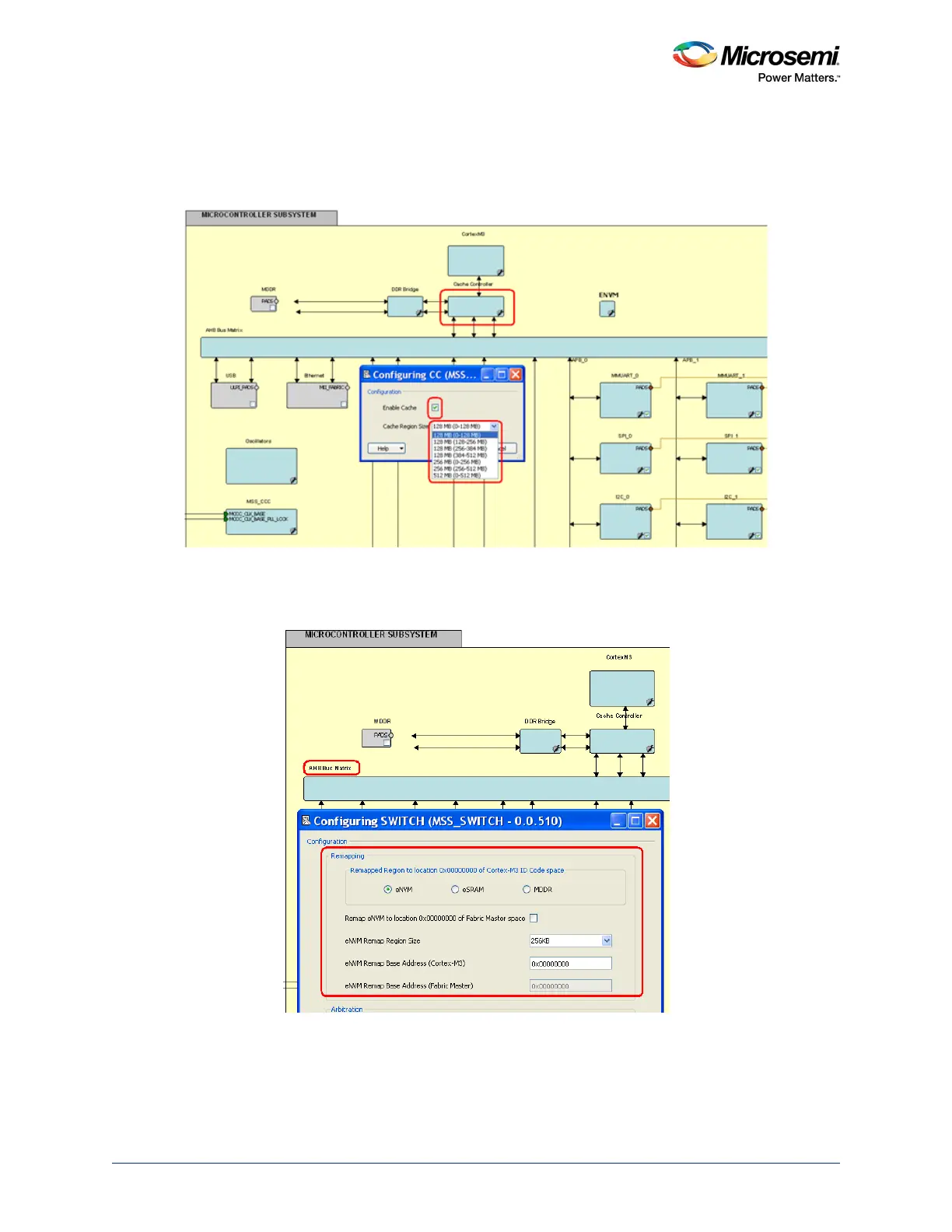

Figure 62 • MSS Configurator with Cache Controller Configuration Options
The following figure shows how to select the main memory from memory blocks eNVM, eSRAM, and
DDR SDRAM.
Figure 63 • MSS Configurator with Remapping Options for eNVM, eSRAM, and MDDR
