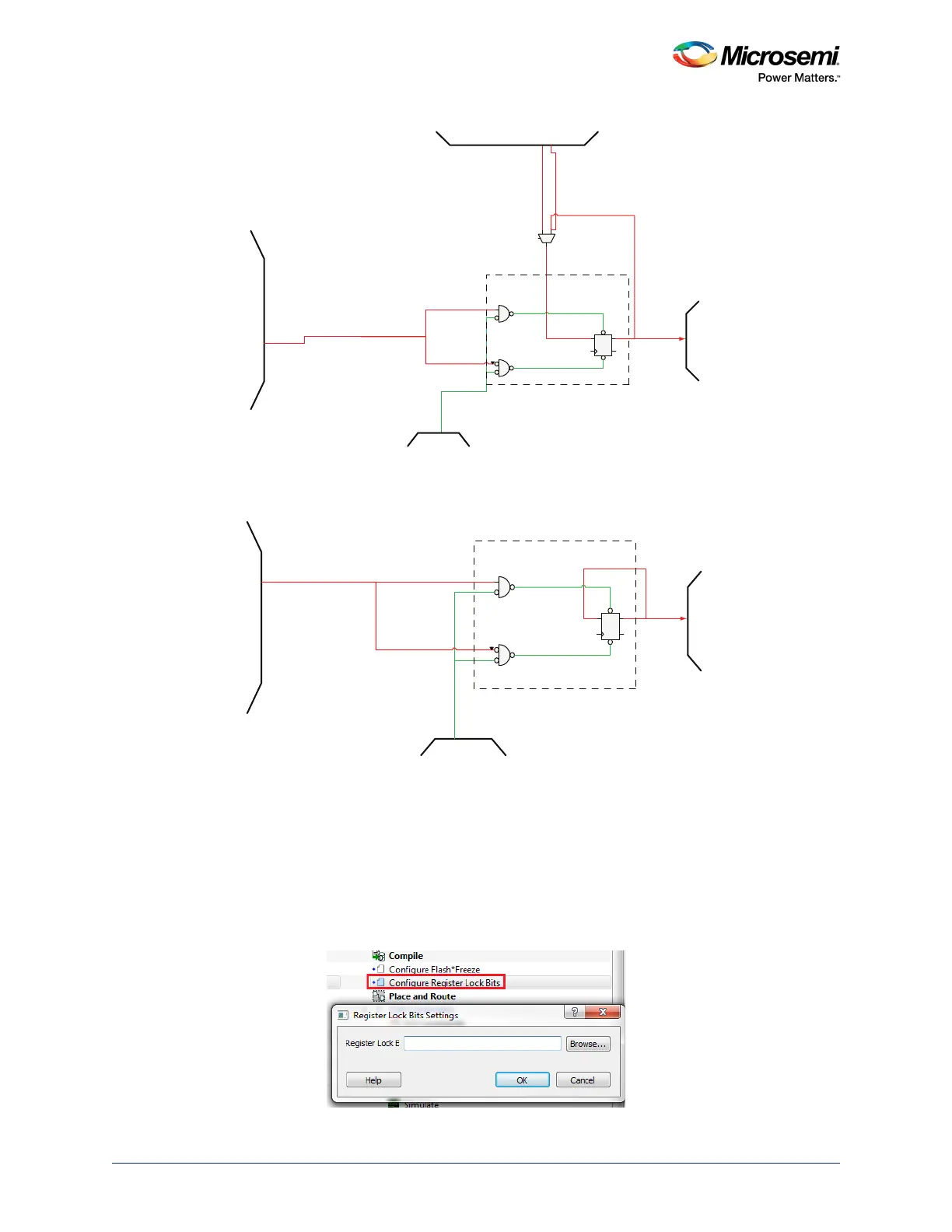

Figure 315 • RO-P Type
Figure 316 • RO-U Type
22.1 Register Lock Bits Configuration
The Register Lock Bits Configuration tool is used to lock MSS, SERDES, and FDDR configuration
registers of SmartFusion2 devices in order to prevent them from being overwritten by masters that have
access to these registers. Register lock bits are set in a text (*.txt) file, which is then imported into the
SmartFusion2 project. From the Design Flow window, click Configure Register Lock Bits to open the
configurator. Then, click Browse... to navigate to the text file (*.txt) that contains the Register Lock Bit
settings. (see the following figure).
Figure 317 • Register Lock Bit Settings
