Ethernet MAC
UG0331 User Guide Revision 15.0 387
11.5.1 SGMII Interface Configuration
1. Select the interface as TBI, line speed as required. Enable the management interface check box as
shown in the following figure.

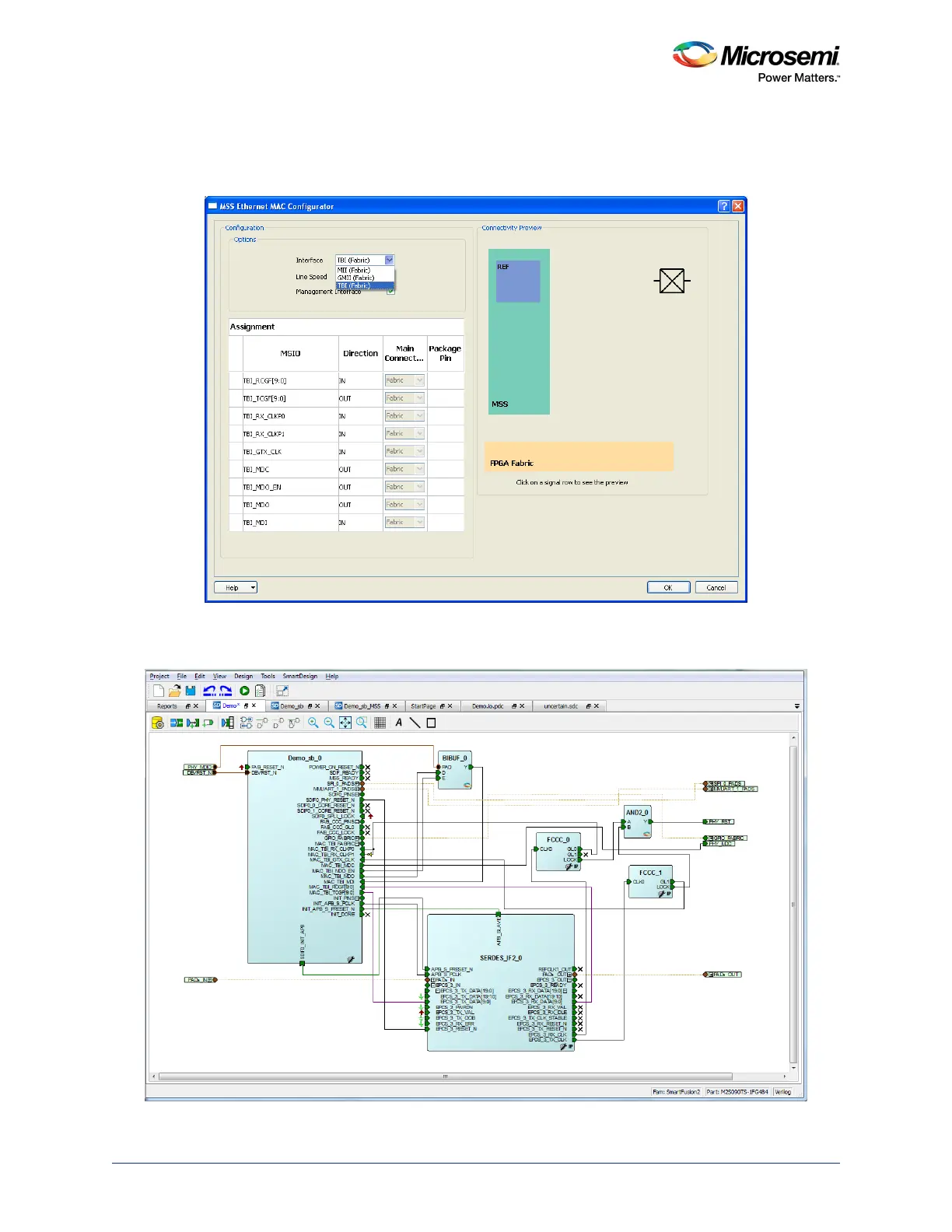

Figure 159 • MSS Ethernet Configurator with TBI interface
2. Connect TBI signals to SERDES, which is configured for EPCS mode, as shown in the following
figure.
Figure 160 • SGMII Interface Signals: TBI to SERDES
