Embedded SRAM (eSRAM) Controllers
UG0331 User Guide Revision 15.0 195
The following steps are used to configure Programmable Slave Maximum Latency for eSRAM_0 and
eSRAM_1 blocks and eSRAM SECDED feature in the application using System Builder.
1. Navigate to the Microcontroller tab in the System Builder window to configure Programmable
Slave Maximum Latency for eSRAM_0 and eSRAM_1 blocks. The following figure shows the
System Builder - Microcontroller tab. For more information on the Programmable Slave Maximum
Latency configuration and remapping eSRAM to Cortex-M3 code space, click Help and select AHB
Bus Matrix document as shown in the figure. Refer to
AC390: SmartFusion2 SoC FPGA – Remapping eNVM, eSRAM, and DDR/SDR SDRAM Memories
Application Note.

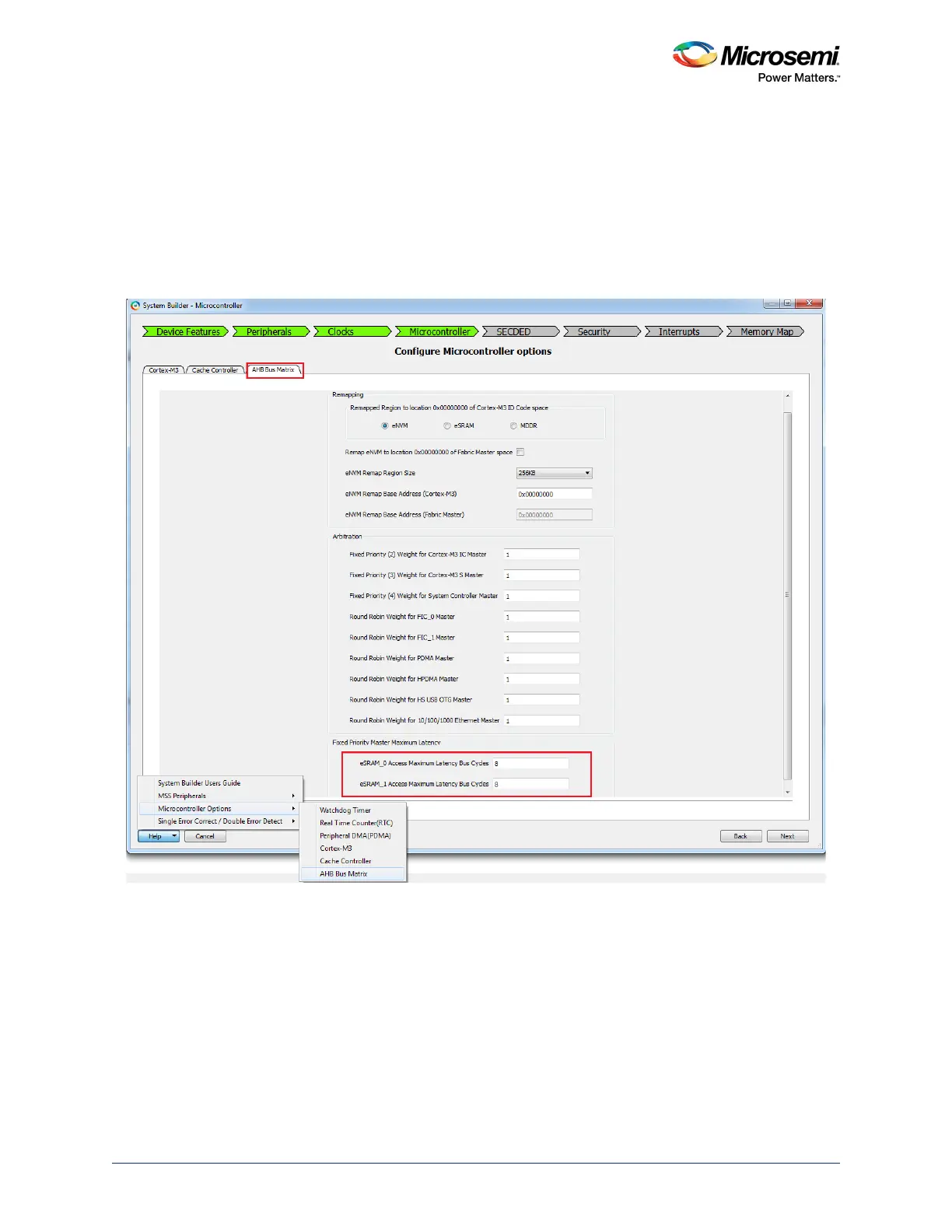

Figure 98 • System Builder - Microcontroller Tab
