AHB Bus Matrix
UG0331 User Guide Revision 15.0 233
7.2 How to Use AHB Bus Matrix
This section describes how to use the AHB bus matrix in an application.
7.2.1 Design Flow
The following steps are used to configure the AHB bus matrix in the application:
1. Configure the AHB bus matrix by using the MSS configurator in the application, as shown in the
following figure.

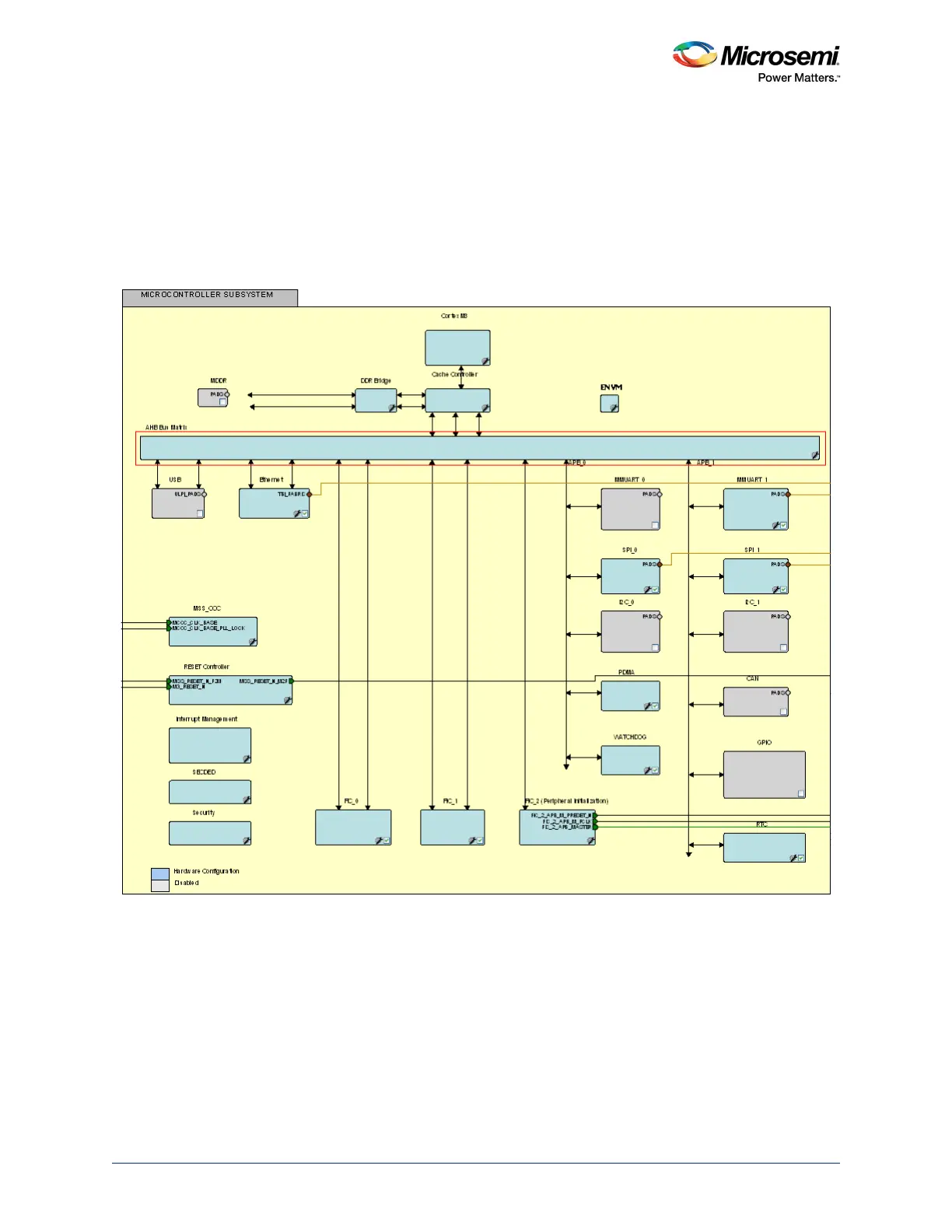

Figure 118 • AHB Bus Matrix in Libero SoC Design MSS Configurator
