Embedded NVM (eNVM) Controllers
UG0331 User Guide Revision 15.0 145
5 Embedded NVM (eNVM) Controllers
The SmartFusion2 SoC FPGA devices have one or two embedded nonvolatile memory (eNVM) blocks
(depending on the device) for user non-volatile memory. The eNVM controller interfaces these eNVM
blocks to the advanced high-performance bus (AHB) bus matrix.
5.1 Features
• Single error correction and dual error detection (SECDED) protected
• Based on the selected SmartFusion2 device, the total size of eNVM memory ranges from 128 KB,
256 KB, and 512 KB.
• M2S005 has a single block of 128 KB.
• M2S010, M2S025, M2S050, and M2S060 have a single block of 256 KB.
• M2S090 and M2S150 have two blocks of 256 KB each. The total eNVM size is 512 KB.
• In devices with two blocks present, any two masters can accesses the eNVM blocks (eNVM_0 and
eNVM_1) in parallel, which improves the overall performance of the system.
As shown in the following figure, the eNVM block(s) is connected as slave to the AHB bus matrix.

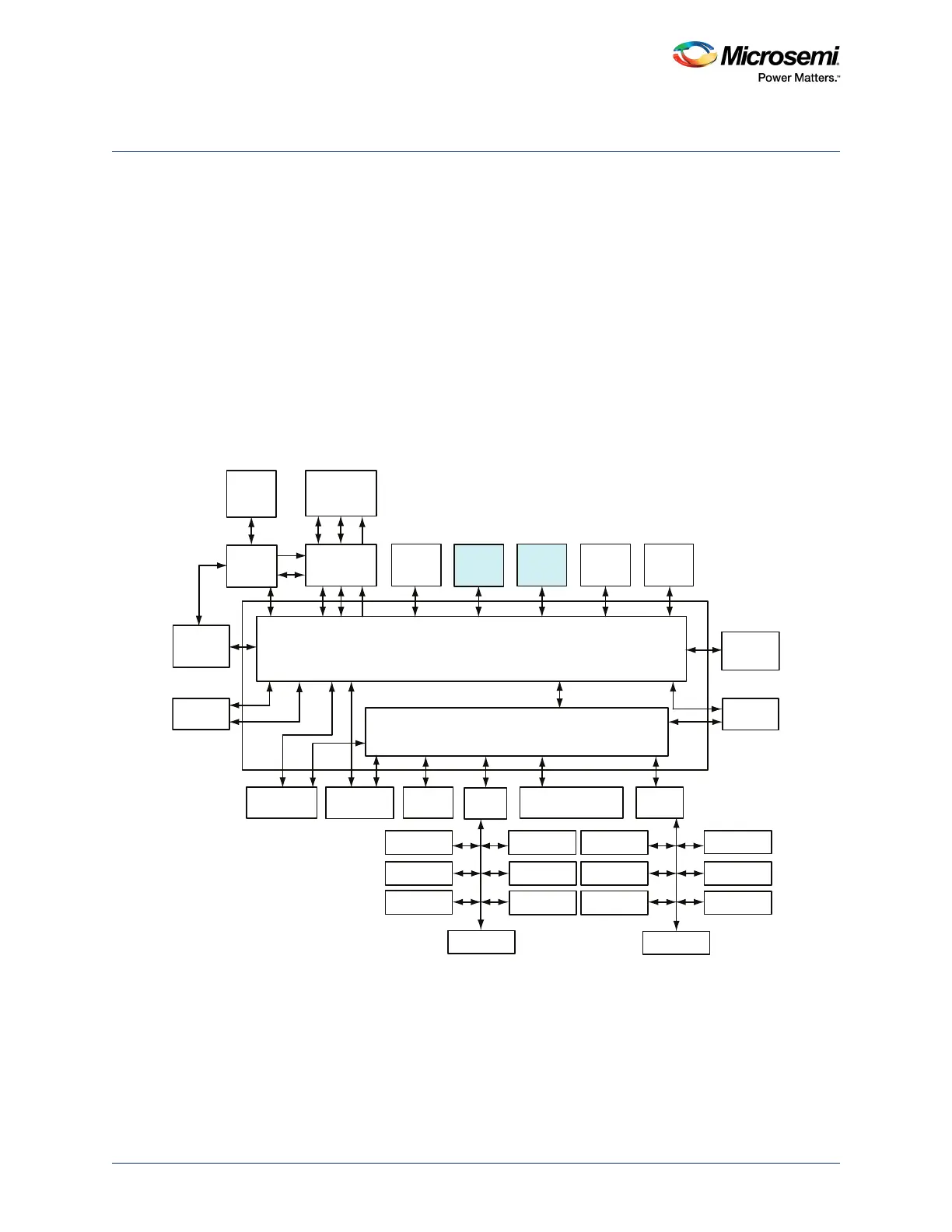

Figure 65 • eNVM Connection to AHB Bus Matrix
AHB Bus Matrix
eSRAM_0
System
Controller
Cache
Controller
SD IC
ARM Cortex-M3
Processor
SDI
MSS DDR
Bridge
PDMA
MS6
MM3
AHB To AHB Bridge with Address Decoder
USB OTG
HPDMA
MDDR
APB_0
SYSREG
Triple Speed
Ethernet MAC
FIC_0
MM4 MS4
MS2 MS3 MS0
MS5
MS1
MM5 MM6
MM7
MM8
MM2 MM1 MM0 MM9
IDC
D/S
eNVM_0 eNVM_1 eSRAM_1
FIC_2 (Peripheral
Initialization)
APB_1
MMUART_0
SPI_0
I2C_0
PDMA
Configuration
WATCHDOG
FIIC
TIMERx2
MMUART_1
SPI_1
I2C_1
GPIO
CAN
RTC
COMM_BLK
FIC_1
MSS_FIC MS6_USB
MS5_MAC MS5_SR MS5_APB0 MS5_FIC2 MS5_APB1
