16.3 MSS GPIO Usage
16.3.1 Configuring MSS GPIO Using Libero SoC
This sub-section describes MSS GPIO configuration in Libero SoC and shows different options available
for configuring GPIO. The MSS GPIO is disabled by default in MSS configurator when the Libero SoC
project is created.
Following pages describe the steps to be used to configure in Libero SoC.
Step 1
Enable the MSS GPIO in the Libero SoC project using MSS configurator, as shown in the following
figure.

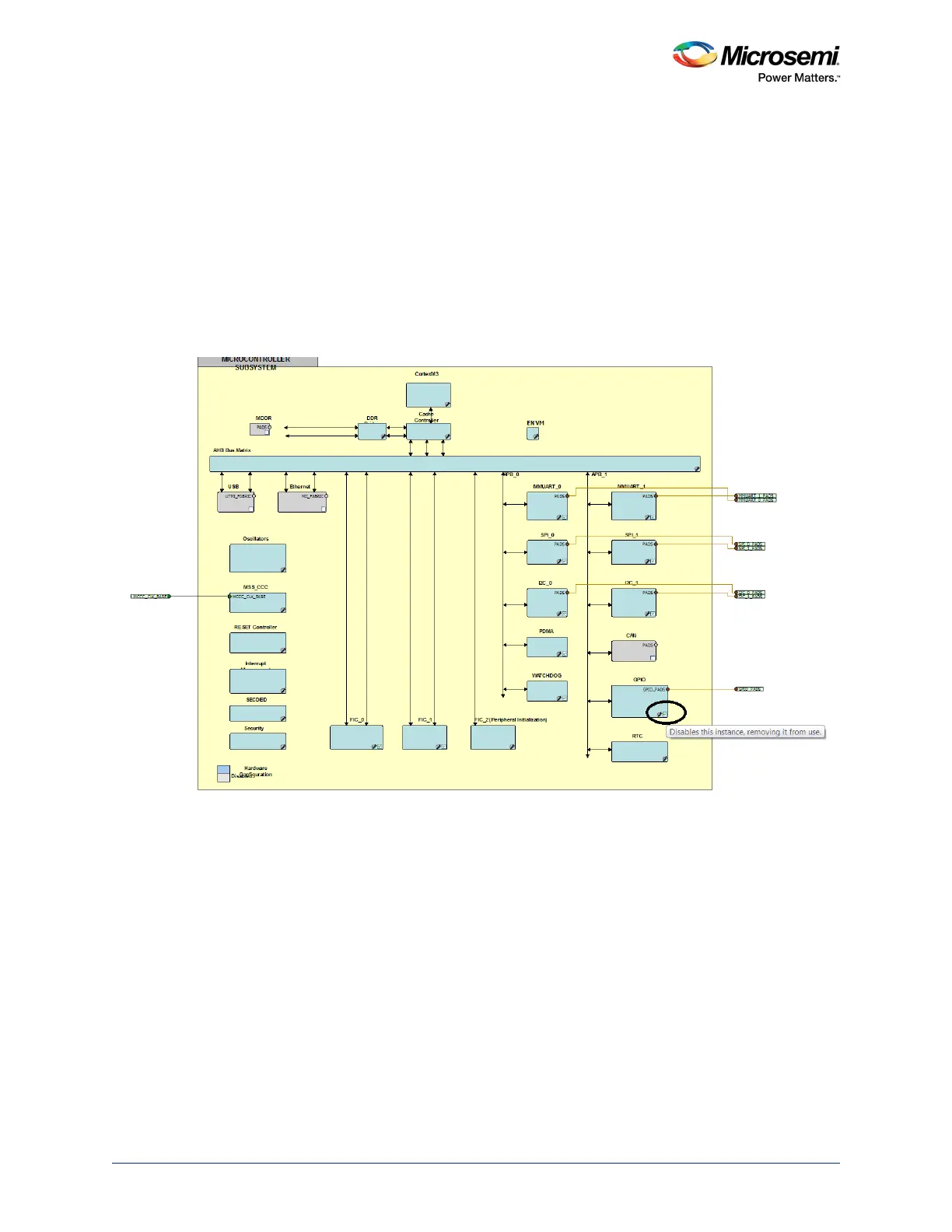

Figure 243 • Enable GPIO in MSS Configurator
