Fabric Interface Controller
UG0331 User Guide Revision 15.0 765

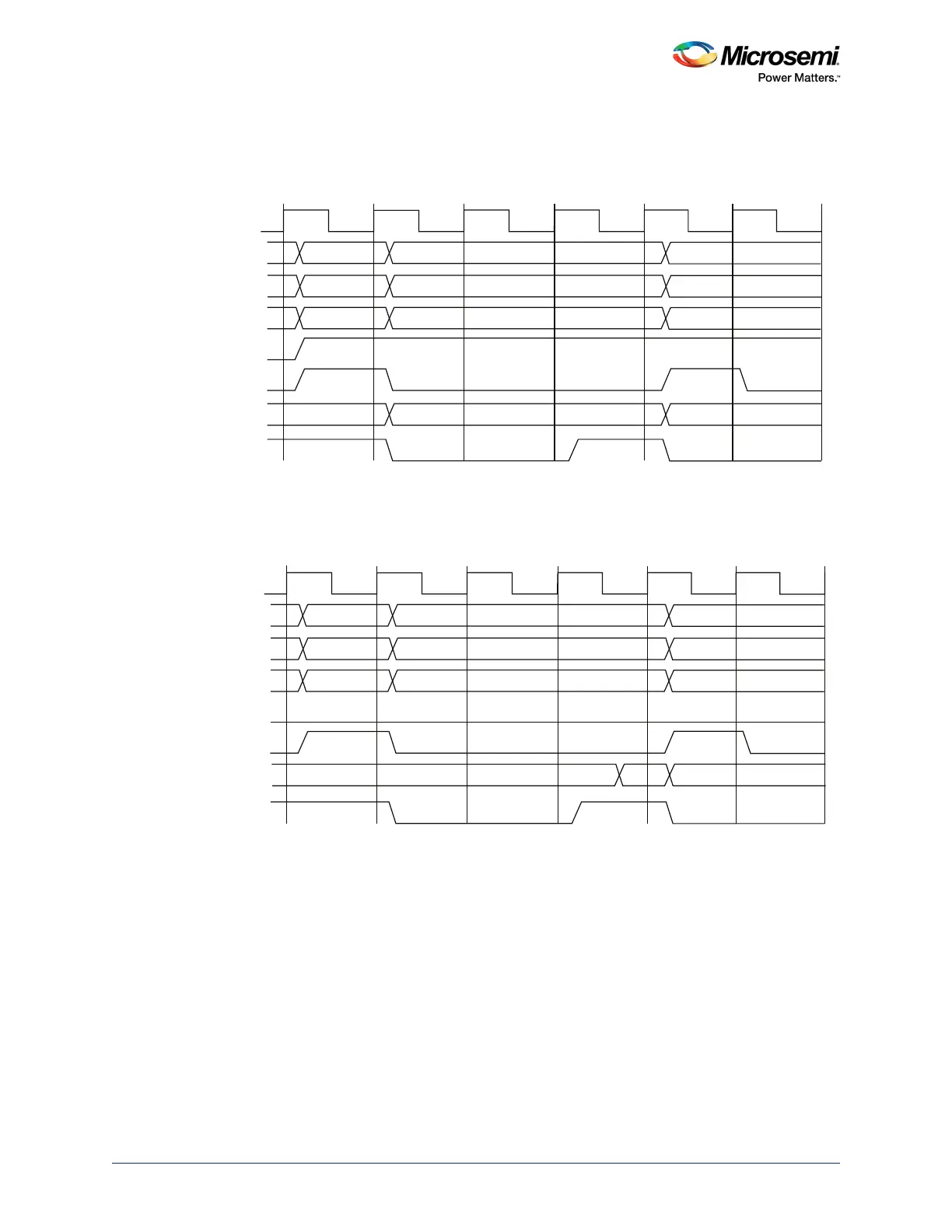

The following diagram shows the AHB-Lite bus signals from the fabric master to the fabric interface
controller for write transactions in Bypass mode. Generation of pipelined requests depends on the
efficiency of the master in the fabric to generate it.
Figure 333 • AHB-Lite Bus Signals from Fabric Master to FIC for a Write Transaction in Bypass Mode
The following diagram shows the AHB-Lite bus signals from the fabric master to the fabric interface
controller for read transactions in Bypass mode. Generation of pipelined requests depends on the
efficiency of the master in the fabric to generate it.
Figure 334 • AHB-Lite Bus Signals from Fabric Master to FIC for a Read Transaction in Bypass Mode
T1 T2 T3 T4 T5 T6 T7
A
A + 4
00
00
10
10
10
10
FIC_X_AHB_S_HCLK
FIC_X_AHB_S_HADDR[31:0]
FIC_X_AHB_S_
HTRANS
FIC_X_AHB_S_ HSIZE
FIC_X_AHB_S_ HWRITE
FIC_X_AHB_S_ HSEL
FIC_X_AHB_S_ HWDATA[31:0]
FIC_X_AHB_S_ HREADY
Data (A)
Data (A+4)
T1 T2 T3 T4 T5 T6 T7
A
A + 4
00
00
10
10
10
10
FIC_X_AHB_S_HCLK
FIC_X_AHB_S_
HADDR[31:0]
FIC_X_AHB_S_HTRANS
FIC_X_AHB_S_HSIZE
FIC_X_AHB_S_HWRITE
FIC_X_AHB_S_HSEL
FIC_X_AHB_S_HRDATA[31:0]
FIC_X_AHB_S_HREADY
Data (A)
