Microsemi SmartFusion2 - Figure 361 FIC_2 Configuration for MSS DDR, FDDR, and SERDES

APB Configuration Interface
UG0331 User Guide Revision 15.0 789
CoreSF2Config must be instantiated in SmartDesign.connections made as illustrated in FIC_2
configurator. The following figure shows the connectivity between APB configuration interfaces of the
SERDES and DDR subsystems (both are selected).

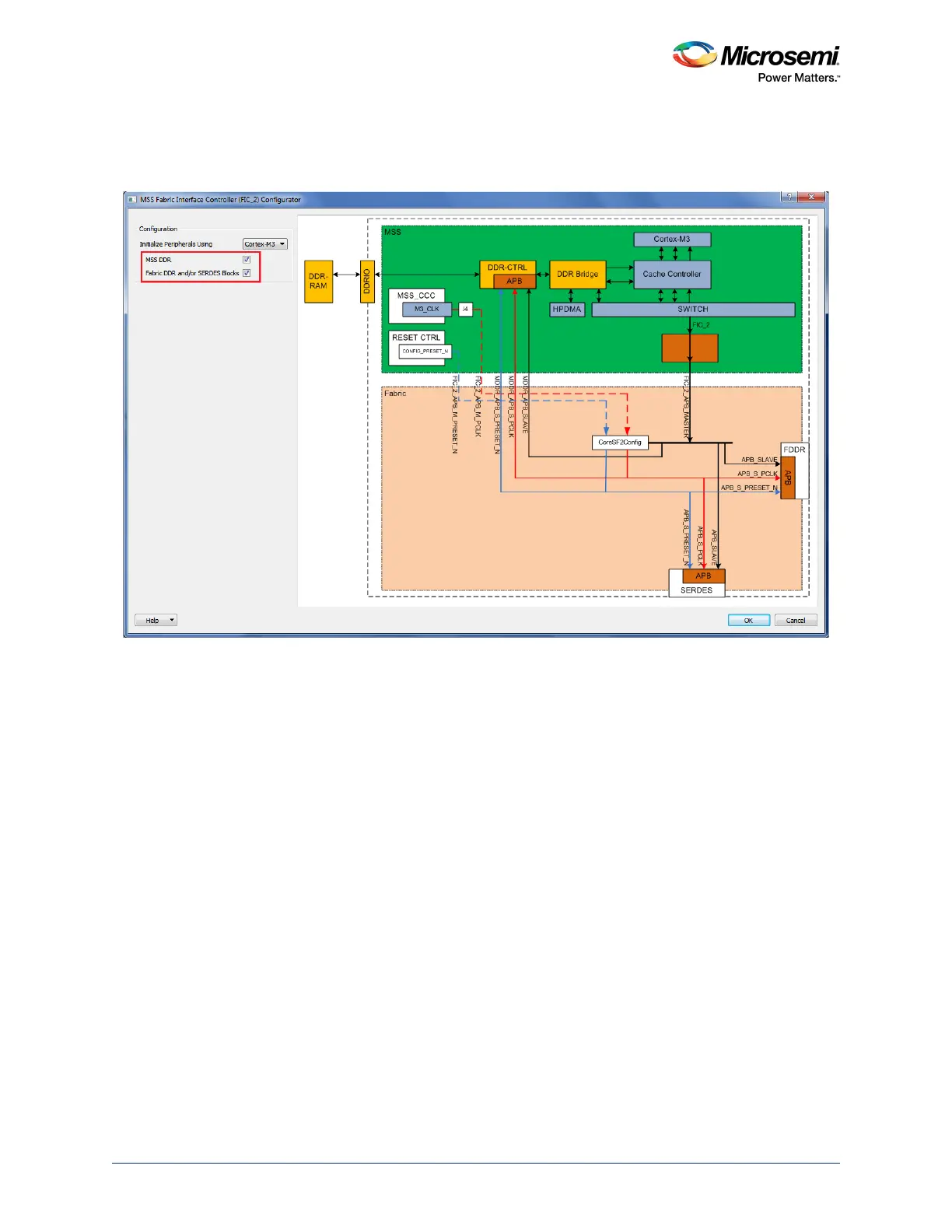

Figure 361 • FIC_2 Configuration for MSS DDR, FDDR, and SERDES
If System Builder is used for creating the design, CoreSF2Config is Instantiated and connections are
made automatically.
