Reset Controller
UG0331 User Guide Revision 15.0 666
21.4 How to Use the Reset Controller
21.4.1 Ramp Delay Configuration
The delay can be configured to 50 µs, 1 ms, 10 ms, or 100 ms in the New Project window while creating
the Libero SoC project as shown in the following figure. Users can also access and change this setting
after the project has been created from the Project Settings window.

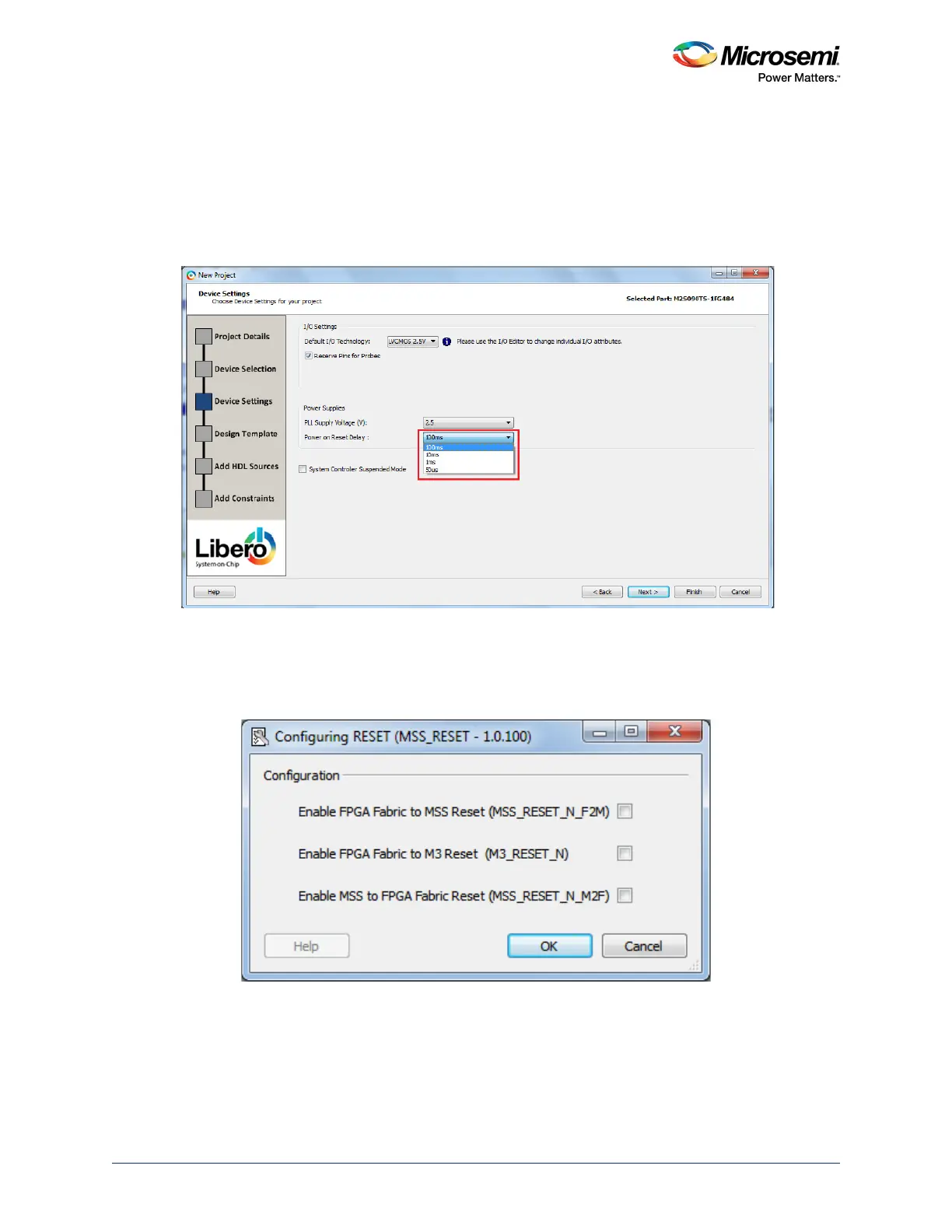

Figure 303 • Ramp Delay Configuration
21.4.2 Reset Controller Configurator
The resets MSS_RESET_N_F2M, M3_RESET_N, and MSS_RESET_N_M2F can be enabled using the
Reset Controller configurator in Libero SoC, as shown in the following figure.
Figure 304 • Configuring Reset
