Embedded SRAM (eSRAM) Controllers
UG0331 User Guide Revision 15.0 196
2. Navigate to the SECDED tab in the System Builder window to configure SECDED options for
eSRAM_0 and eSRAM_1. The following figure shows the System Builder - SECDED tab. For more
information on SECDED, click Help and select SECDED document. Refer to
UG0388: SmartFusion2 SoC FPGA Error Detection and Correction of eSRAM Memory Demo User
Guide.

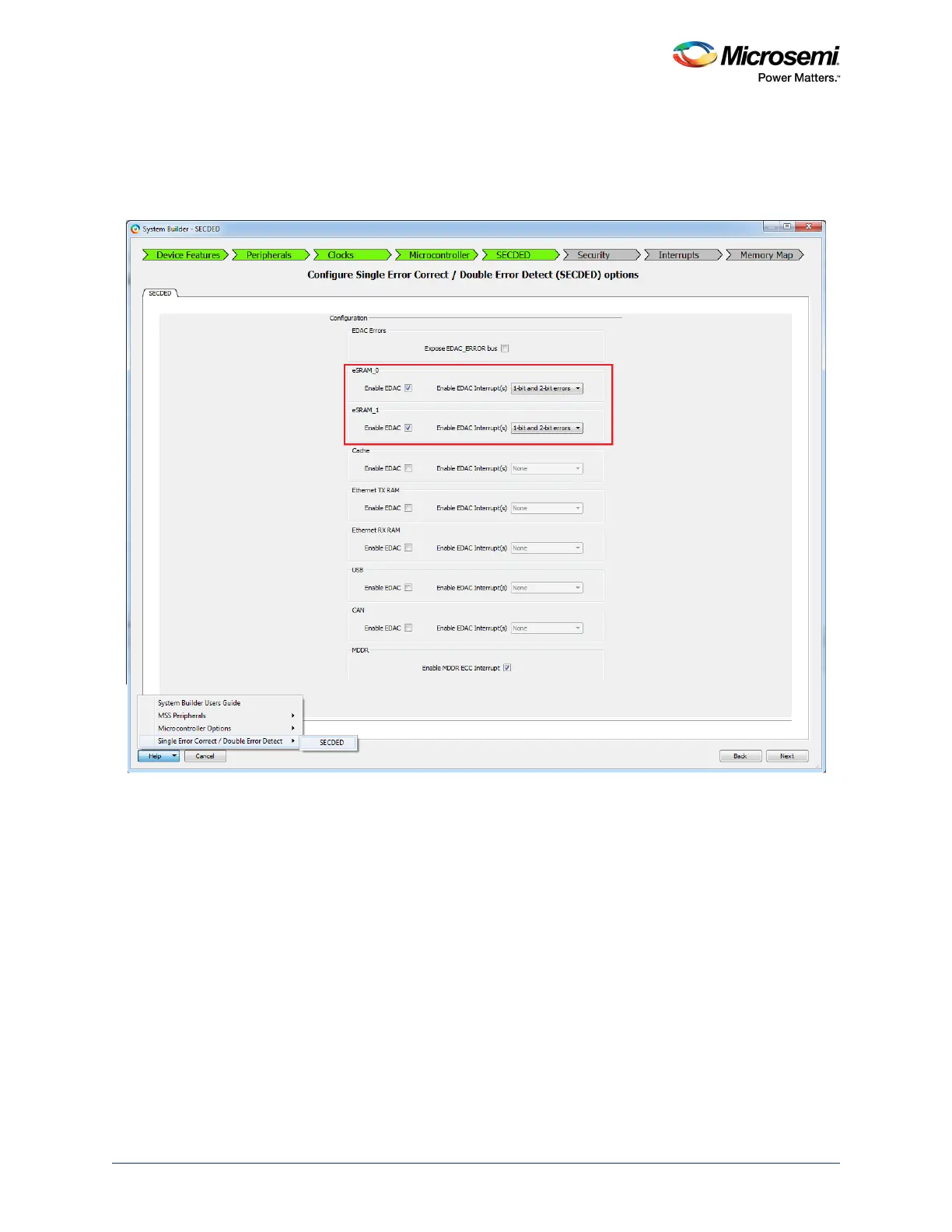

Figure 99 • System Builder - SECDED Tab
The SECDED feature can be enabled or disabled by selecting Enable EDAC for eSRAM_0 and
eSRAM_1. The interrupts for 1-bit error or 2-bit error, or both 1-bit and 2-bit errors can be enabled.
