12.2.4 Interrupt Generation
The interrupt int_n is asserted, if a particular interrupt status bit and the respective enable bit are set. The
following figure shows how the system interrupt is generated.

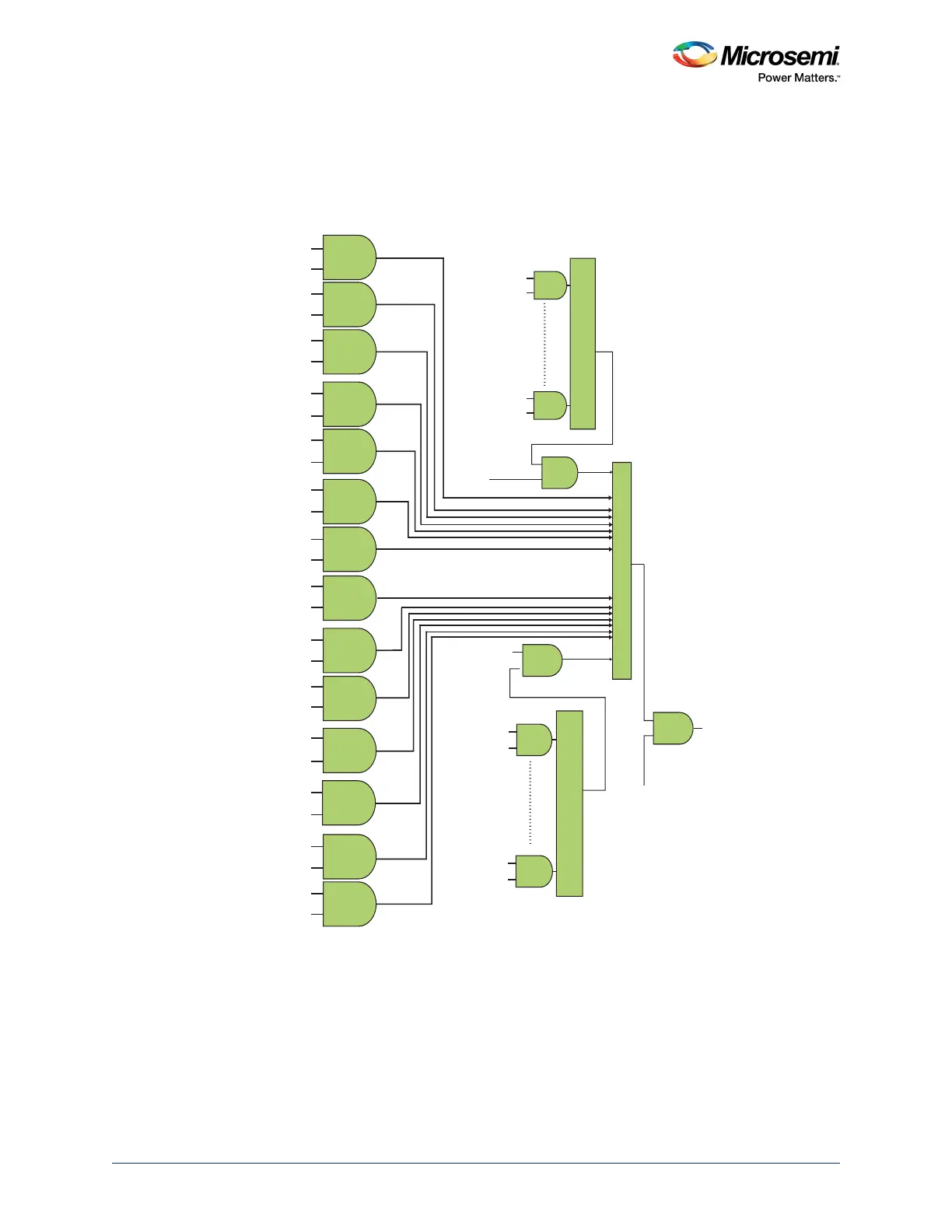

Figure 169 • Interrupt Generation
